Air curtain Dam

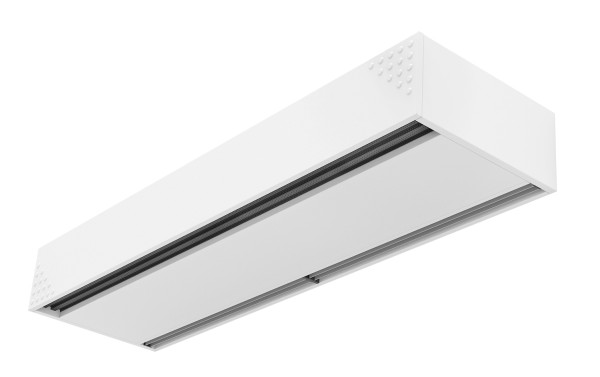

DAM is an air curtain from the standard range that stands out for its versatility and the design of its front part. The classic suction grille has been efficiently replaced by a front panel that can be customised with logos, signage, graphics or images and a double air intake at the top and bottom of the curtain. With this solution, the need for grille maintenance is eliminated and its decorative front panel provides a modern and clean view of the equipment.

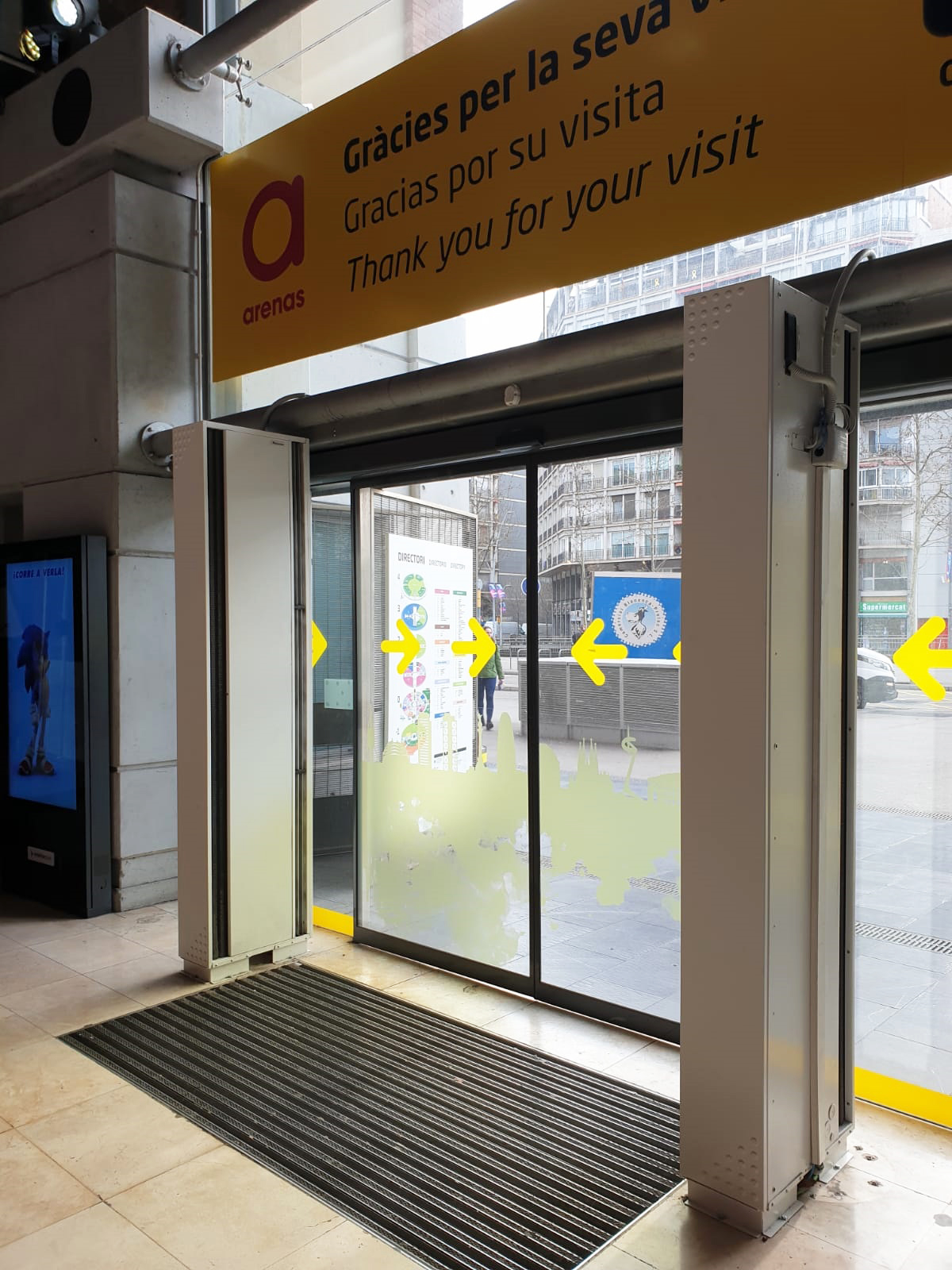

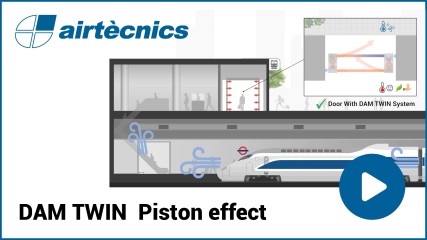

DAM TWIN air curtain system: This consists of two DAM air curtains facing each other vertically with the jets reversed. This creates a double jet separation zone at the door. The DAM TWIN air curtain system is an optimal solution in installations with very adverse situations where the air curtain can be affected by strong wind, high indoor/outdoor temperature difference, several doors, more than one floor, large halls or high pressure difference, among others.
The Dam air curtain has obtained the CSA certification according to the CSA - UL standard for its presence in the North American market.
- Self-supporting casing construction made of galvanized steel plate, finished in structural epoxy-polyester painting white colour RAL9016 as standard. Other colours or stainless steel are available on request.

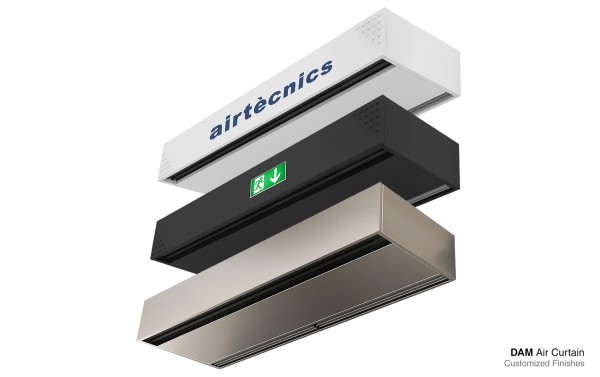

- Front panel with option to customize and the possibility of including personalized logos, signs, graphic designs, images, etc.
- The inlet areas are located behind the front panel. They do not need maintenance.
- Anodized aluminium outlet vanes, airfoil shaped, adjustable from 0 to 15º each side.
- Low noise double-inlet centrifugal fans with external rotor motor. 5-speed controller. EC models assembled with very low consumption efficiency fans.
- “P” type with water heated coil. “E” type with electrical shielded elements, three stages with integrated regulation. “A” type without heating, air only. Optional expansion DX coil.
- Includes Plug&Play control with 7m RJ45 cable and infrared remote control. Optional: Clever control (programmable, automatic, intelligent, energy saving, Modbus RTU for BMS…)
Model Nominal Airflow
m³/hRecommended Installation Range
mNominal Airflow 208V
m³/hDAM M 1000 A 1800 2,5-3,5 - DAM M 1500 A 2700 2,5-3,5 - DAM M 2000 A 3600 2,5-3,5 - DAM M 2500 A 4500 2,5-3,5 - DAM M 3000 A 5400 2,5-3,5 - DAM ECM 1000 A 1840 2,5-3,8 - DAM ECM 1500 A 2760 2,5-3,8 - DAM ECM 2000 A 3680 2,5-3,8 - DAM ECM 2500 A 4600 2,5-3,8 - DAM ECM 3000 A 5520 2,5-3,8 - DAM G 1000 A 2400 3-4 - DAM G 1500 A 3200 3-4 - DAM G 2000 A 4800 3-4 - DAM G 2500 A 5600 3-4 - DAM G 3000 A 6400 3-4 - DAM ECG 1000 A 2700 3-4,2 - DAM ECG 1500 A 3600 3-4,2 - DAM ECG 2000 A 5400 3-4,2 - DAM ECG 2500 A 6300 3-4,2 - DAM ECG 3000 A 7200 3-4,2 - Model Nominal Airflow
m³/hElectrical Heating Capacity 400Vx3
kWRecommended Installation Range
mElectrical Heating Capacity 460Vx3
kWElectrical Heating Capacity 480Vx3
kWElectrical Heating Capacity 208Vx3
kWElectrical Heating Capacity 575Vx3
kWNominal Airflow 208V
m³/hDAM M 1000 E 1800 3/6/9 2,5-3,5 - - - - - DAM M 1500 E 2700 4/8/12 2,5-3,5 - - - - - DAM M 2000 E 3600 6/12/18 2,5-3,5 - - - - - DAM M 2500 E 4500 6/12/18 2,5-3,5 - - - - - DAM M 3000 E 5400 8/16/24 2,5-3,5 - - - - - DAM ECM 1000 E 1840 3/6/9 2,5-3,8 - - - - - DAM ECM 1500 E 2760 4/8/12 2,5-3,8 - - - - - DAM ECM 2000 E 3680 6/12/18 2,5-3,8 - - - - - DAM ECM 2500 E 4600 6/12/18 2,5-3,8 - - - - - DAM ECM 3000 E 5520 8/16/24 2,5-3,8 - - - - - DAM G 1000 E 2400 5/10/15 3-4 - - - - - DAM G 1500 E 3200 7,5/15/22,5 3-4 - - - - - DAM G 2000 E 4800 10/20/30 3-4 - - - - - DAM G 2500 E 5600 10/20/30 3-4 - - - - - DAM G 3000 E 6400 10/20/30 3-4 - - - - - DAM ECG 1000 E 2700 5/10/15 3-4,2 - - - - - DAM ECG 1500 E 3600 7,5/15/22,5 3-4,2 - - - - - DAM ECG 2000 E 5400 10/20/30 3-4,2 - - - - - DAM ECG 2500 E 6300 10/20/30 3-4,2 - - - - - DAM ECG 3000 E 7200 10/20/30 3-4,2 - - - - - Model Nominal Airflow
m³/hRecommended Installation Range
mHeating Capacity 80/60ºC (kW)
kWHeating Capacity 60/40ºC (kW)
kWHeating Capacity 50/40ºC
kWHeating Capacity 80/60ºC (Ventilation 208Vx1)
kWHeating Capacity 60/40ºC (Ventilation 208Vx1)
kWHeating Capacity 50/40ºC (Ventilation 208Vx1)
kWNominal Airflow 208V
m³/hDAM M 1000 P64 1660 2,5-3,5 - 8,56 - - - - - DAM M 1000 P54 1660 2,5-3,5 - - 8,52 - - - - DAM M 1000 P86 1660 2,5-3,5 9,17 - - - - - - DAM M 1500 P64 2490 2,5-3,5 - 13,69 - - - - - DAM M 1500 P54 2490 2,5-3,5 - - 14,34 - - - - DAM M 1500 P86 2490 2,5-3,5 14,26 - - - - - - DAM M 2000 P64 3320 2,5-3,5 - 18,26 - - - - - DAM M 2000 P54 3320 2,5-3,5 - - 18,65 - - - - DAM M 2000 P86 3320 2,5-3,5 20,65 - - - - - - DAM M 2500 P64 4150 2,5-3,5 - 22,12 - - - - - DAM M 2500 P54 4150 2,5-3,5 - - 24,32 - - - - DAM M 2500 P86 4150 2,5-3,5 26,92 - - - - - - DAM M 3000 P64 4980 2,5-3,5 - 28,37 - - - - - DAM M 3000 P54 4980 2,5-3,5 - - 29,77 - - - - DAM M 3000 P86 4980 2,5-3,5 33,24 - - - - - - DAM ECM 1000 P64 1720 2,5-3,8 - 8,77 - - - - - DAM ECM 1000 P54 1720 2,5-3,8 - - 8,74 - - - - DAM ECM 1000 P86 1720 2,5-3,8 9,38 - - - - - - DAM ECM 1500 P64 2580 2,5-3,8 - 14,02 - - - - - DAM ECM 1500 P54 2580 2,5-3,8 - - 14,71 - - - - DAM ECM 1500 P86 2580 2,5-3,8 14,58 - - - - - - DAM ECM 2000 P64 3440 2,5-3,8 - 18,7 - - - - - DAM ECM 2000 P54 3440 2,5-3,8 - - 19,13 - - - - DAM ECM 2000 P86 3440 2,5-3,8 21,12 - - - - - - DAM ECM 2500 P64 4300 2,5-3,8 - 23,33 - - - - - DAM ECM 2500 P54 4300 2,5-3,8 - - 24,95 - - - - DAM ECM 2500 P86 4300 2,5-3,8 27,53 - - - - - - DAM ECM 3000 P64 5160 2,5-3,8 - 29,05 - - - - - DAM ECM 3000 P54 5160 2,5-3,8 - - 30,54 - - - - DAM ECM 3000 P86 5160 2,5-3,8 40 - - - - - - DAM G 1000 P64 2250 3-4 - 10,42 - - - - - DAM G 1000 P54 2250 3-4 - - 10,56 - - - - DAM G 1000 P86 2250 3-4 11,04 - - - - - - DAM G 1500 P64 3000 3-4 - 15,47 - - - - - DAM G 1500 P54 3000 3-4 - - 16,37 - - - - DAM G 1500 P86 3000 3-4 16,02 - - - - - - DAM G 2000 P64 4500 3-4 - 22,29 - - - - - DAM G 2000 P54 4500 3-4 - - 23,15 - - - - DAM G 2000 P86 4500 3-4 24,92 - - - - - - DAM G 2500 P64 5250 3-4 - 26,61 - - - - - DAM G 2500 P54 5250 3-4 - - 28,76 - - - - DAM G 2500 P86 5250 3-4 31,16 - - - - - - DAM G 3000 P64 6000 3-4 - 32,1 - - - - - DAM G 3000 P54 6000 3-4 - - 34,03 - - - - DAM G 3000 P86 6000 3-4 37,35 - - - - - - DAM ECG 1000 P64 2550 3-4,2 - 11,27 - - - - - DAM ECG 1000 P54 2550 3-4,2 - - 11,5 - - - - DAM ECG 1000 P86 2550 3-4,2 11,89 - - - - - - DAM ECG 1500 P64 3400 3-4,2 - 16,77 - - - - - DAM ECG 1500 P54 3400 3-4,2 - - 17,86 - - - - DAM ECG 1500 P86 3400 3-4,2 17,29 - - - - - - DAM ECG 2000 P64 5100 3-4,2 - 24,14 - - - - - DAM ECG 2000 P54 5100 3-4,2 - - 25,24 - - - - DAM ECG 2000 P86 5100 3-4,2 26,86 - - - - - - DAM ECG 2500 P64 5950 3-4,2 - 28,84 - - - - - DAM ECG 2500 P54 5950 3-4,2 - - 31,38 - - - - DAM ECG 2500 P86 5950 3-4,2 33,63 - - - - - - DAM ECG 3000 P64 6800 3-4,2 - 34,81 - - - - - DAM ECG 3000 P54 6800 3-4,2 - - 37,16 - - - - DAM ECG 3000 P86 6800 3-4,2 40,34 - - - - - - Model Nominal Airflow
m³/hRecommended Installation Range
mNominal Airflow 208V
m³/hDAM ECM 1000 A 1840 2,5-3,8 - DAM ECM 1500 A 2760 2,5-3,8 - DAM ECM 2000 A 3680 2,5-3,8 - DAM ECM 2500 A 4600 2,5-3,8 - DAM ECM 3000 A 5520 2,5-3,8 - DAM ECG 1000 A 2700 3-4,2 - DAM ECG 1500 A 3600 3-4,2 - DAM ECG 2000 A 5400 3-4,2 - DAM ECG 2500 A 6300 3-4,2 - DAM ECG 3000 A 7200 3-4,2 - Model Nominal Airflow
m³/hElectrical Heating Capacity 400Vx3
kWRecommended Installation Range
mElectrical Heating Capacity 460Vx3
kWElectrical Heating Capacity 480Vx3
kWElectrical Heating Capacity 208Vx3
kWElectrical Heating Capacity 575Vx3
kWNominal Airflow 208V
m³/hDAM ECM 1000 E 1840 3/6/9 2,5-3,8 - - - - - DAM ECM 1500 E 2760 4/8/12 2,5-3,8 - - - - - DAM ECM 2000 E 3680 6/12/18 2,5-3,8 - - - - - DAM ECM 2500 E 4600 6/12/18 2,5-3,8 - - - - - DAM ECM 3000 E 5520 8/16/24 2,5-3,8 - - - - - DAM ECG 1000 E 2700 5/10/15 3-4,2 - - - - - DAM ECG 1500 E 3600 7,5/15/22,5 3-4,2 - - - - - DAM ECG 2000 E 5400 10/20/30 3-4,2 - - - - - DAM ECG 2500 E 6300 10/20/30 3-4,2 - - - - - DAM ECG 3000 E 7200 10/20/30 3-4,2 - - - - - Model Nominal Airflow
m³/hRecommended Installation Range
mHeating Capacity 80/60ºC (kW)
kWHeating Capacity 60/40ºC (kW)
kWHeating Capacity 50/40ºC
kWHeating Capacity 80/60ºC (Ventilation 208Vx1)
kWHeating Capacity 60/40ºC (Ventilation 208Vx1)
kWHeating Capacity 50/40ºC (Ventilation 208Vx1)
kWNominal Airflow 208V
m³/hDAM ECM 1000 P64 1720 2,5-3,8 - 8,77 - - - - - DAM ECM 1000 P54 1720 2,5-3,8 - - 8,74 - - - - DAM ECM 1000 P86 1720 2,5-3,8 9,38 - - - - - - DAM ECM 1500 P64 2580 2,5-3,8 - 14,02 - - - - - DAM ECM 1500 P54 2580 2,5-3,8 - - 14,71 - - - - DAM ECM 1500 P86 2580 2,5-3,8 14,58 - - - - - - DAM ECM 2000 P64 3440 2,5-3,8 - 18,7 - - - - - DAM ECM 2000 P54 3440 2,5-3,8 - - 19,13 - - - - DAM ECM 2000 P86 3440 2,5-3,8 21,12 - - - - - - DAM ECM 2500 P64 4300 2,5-3,8 - 23,33 - - - - - DAM ECM 2500 P54 4300 2,5-3,8 - - 24,95 - - - - DAM ECM 2500 P86 4300 2,5-3,8 27,53 - - - - - - DAM ECM 3000 P64 5160 2,5-3,8 - 29,05 - - - - - DAM ECM 3000 P54 5160 2,5-3,8 - - 30,54 - - - - DAM ECM 3000 P86 5160 2,5-3,8 40 - - - - - - DAM G 1000 P54 2250 3-4 - - 10,56 - - - - DAM ECG 1000 P64 2550 3-4,2 - 11,27 - - - - - DAM ECG 1000 P54 2550 3-4,2 - - 11,5 - - - - DAM ECG 1000 P86 2550 3-4,2 11,89 - - - - - - DAM ECG 1500 P64 3400 3-4,2 - 16,77 - - - - - DAM ECG 1500 P54 3400 3-4,2 - - 17,86 - - - - DAM ECG 1500 P86 3400 3-4,2 17,29 - - - - - - DAM ECG 2000 P64 5100 3-4,2 - 24,14 - - - - - DAM ECG 2000 P54 5100 3-4,2 - - 25,24 - - - - DAM ECG 2000 P86 5100 3-4,2 26,86 - - - - - - DAM ECG 2500 P64 5950 3-4,2 - 28,84 - - - - - DAM ECG 2500 P54 5950 3-4,2 - - 31,38 - - - - DAM ECG 2500 P86 5950 3-4,2 33,63 - - - - - - DAM ECG 3000 P64 6800 3-4,2 - 34,81 - - - - - DAM ECG 3000 P54 6800 3-4,2 - - 37,16 - - - - DAM ECG 3000 P86 6800 3-4,2 40,34 - - - - - - Model Nominal Airflow
m³/hRecommended Installation Range
mNominal Airflow 208V
m³/hDAM M 1000 A 60Hz CSA 1720 2,5-3,5 1850 DAM M 1500 A 60Hz CSA 2580 2,5-3,5 2775 DAM M 2000 A 60Hz CSA 3440 2,5-3,5 3700 DAM M 2500 A 60Hz CSA 4300 2,5-3,5 4625 DAM M 3000 A 60Hz CSA 5160 2,5-3,5 5550 DAM G 1000 A 60Hz CSA 2280 3-4 2325 DAM G 1500 A 60Hz CSA 3040 3-4 3100 DAM G 2000 A 60Hz CSA 4560 3-4 4650 DAM G 2500 A 60Hz CSA 5320 3-4 5425 DAM G 3000 A 60Hz CSA 6080 3-4 6200 DAM ECG 1000 A 60Hz CSA 2600 3-4,2 2700 DAM ECG 1500 A 60Hz CSA 3470 3-4,2 3600 DAM ECG 2000 A 60Hz CSA 5200 3-4,2 5400 DAM ECG 2500 A 60Hz CSA 6070 3-4,2 6300 DAM ECG 3000 A 60Hz CSA 6940 3-4,2 7200 Model Nominal Airflow
m³/hElectrical Heating Capacity 400Vx3
kWRecommended Installation Range
mElectrical Heating Capacity 460Vx3
kWElectrical Heating Capacity 480Vx3
kWElectrical Heating Capacity 208Vx3
kWElectrical Heating Capacity 575Vx3
kWNominal Airflow 208V
m³/hDAM M 1000 E 60Hz 208V-1 208V-3 CSA 1590 - 2,5-3,5 - - 2/4/6 - 1590 DAM M 1000 E 60Hz 240V-1 208V-3 CSA 1690 - 2,5-3,5 - - 2,5/5/7,5 - - DAM M 1000 E 60Hz 208V-1 480V-3 CSA 1590 - 2,5-3,5 2/4,5/6,5 2,5/5/7,5 - - 1590 DAM M 1000 E 60Hz 240V-1 480V-3 CSA 1690 - 2,5-3,5 3,3/6,7/10 3,7/7,3/11 - - - DAM M 1000 E 60Hz 208V-1 575V-3 CSA 1590 - 2,5-3,5 - - - 3,5/3,5/7 1590 DAM M 1000 E 60Hz 240V-1 575V-3 CSA 1690 - 2,5-3,5 - - - 3,5/7/10,5 - DAM M 1500 E 60Hz 208V-1 208V-3 CSA 2385 - 2,5-3,5 - - 3/6/9 - 2385 DAM M 1500 E 60Hz 240V-1 208V-3 CSA 2535 - 2,5-3,5 - - 3/6,5/9,5 - - DAM M 1500 E 60Hz 208V-1 480V-3 CSA 2385 - 2,5-3,5 3/6,5/9,5 3,5/7/10,5 - - 2385 DAM M 1500 E 60Hz 240V-1 480V-3 CSA 2535 - 2,5-3,5 4,8/9,7/14,5 5,2/10,3/15,5 - - - DAM M 1500 E 60Hz 208V-1 575V-3 CSA 2385 - 2,5-3,5 - - - 5/5/10 2385 DAM M 1500 E 60Hz 240V-1 575V-3 CSA 2535 - 2,5-3,5 - - - 5/10/15 - DAM M 2000 E 60Hz 208V-1 208V-3 CSA 3180 - 2,5-3,5 - - 4/8/12 - 3180 DAM M 2000 E 60Hz 240V-1 208V-3 CSA 3380 - 2,5-3,5 - - 4/8/12 - - DAM M 2000 E 60Hz 208V-1 480V-3 CSA 3180 - 2,5-3,5 4/8,5/12,5 4,5/9/13,5 - - 3180 DAM M 2000 E 60Hz 240V-1 480V-3 CSA 3380 - 2,5-3,5 6,5/13/19,5 7/14/21 - - - DAM M 2000 E 60Hz 208V-1 575V-3 CSA 3180 - 2,5-3,5 - - - 6,5/6,5/13 3180 DAM M 2000 E 60Hz 240V-1 575V-3 CSA 3380 - 2,5-3,5 - - - 6,5/13/19,5 - DAM M 2500 E 60Hz 208V-1 208V-3 CSA 3975 - 2,5-3,5 - - 5/8/13 - 3975 DAM M 2500 E 60Hz 240V-1 208V-3 CSA 4225 - 2,5-3,5 - - 5/8/13 - - DAM M 2500 E 60Hz 208V-1 480V-3 CSA 3975 - 2,5-3,5 4/8,5/12,5 4,5/9/13,5 - - 3975 DAM M 2500 E 60Hz 240V-1 480V-3 CSA 4225 - 2,5-3,5 8,2/16,3/24,5 8,7/17,7/26,5 - - - DAM M 2500 E 60Hz 208V-1 575V-3 CSA 3975 - 2,5-3,5 - - - 8/8/16 3975 DAM M 2500 E 60Hz 240V-1 575V-3 CSA 4225 - 2,5-3,5 - - - 8/16/24 - DAM M 3000 E 60Hz 208V-1 208V-3 CSA 4770 - 2,5-3,5 - - 6,5/8/14,5 - 4770 DAM M 3000 E 60Hz 240V-1 208V-3 CSA 5070 - 2,5-3,5 - - 6,5/8/14,5 - - DAM M 3000 E 60Hz 208V-1 480V-3 CSA 4770 - 2,5-3,5 6/12/18 6,5/13/19,5 - - 4770 DAM M 3000 E 60Hz 240V-1 480V-3 CSA 5070 - 2,5-3,5 9,3/18,7/28 10,2/20,3/30,5 - - - DAM M 3000 E 60Hz 208V-1 575V-3 CSA 4770 - 2,5-3,5 - - - 9,5/9,5/19 4770 DAM M 3000 E 60Hz 240V-1 575V-3 CSA 5070 - 2,5-3,5 - - - 9,5/19/28,5 - DAM G 1000 E 60Hz 208V-1 208V-3 CSA 2115 - 3-4 - - 2,5/5/7,5 - 2115 DAM G 1000 E 60Hz 240V-1 208V-3 CSA 2250 - 3-4 - - 4/8/12 - - DAM G 1000 E 60Hz 208V-1 480V-3 CSA 2115 - 3-4 2,5/5/7,5 3/5,5/8,5 - - 2115 DAM G 1000 E 60Hz 240V-1 480V-3 CSA 2250 - 3-4 4/8/12 4,3/8,7/13 - - - DAM G 1000 E 60Hz 208V-1 575V-3 CSA 2115 - 3-4 - - - 3,5/4/7,5 2115 DAM G 1000 E 60Hz 240V-1 575V-3 CSA 2250 - 3-4 - - - 4/8/12 - DAM G 1500 E 60Hz 208V-1 208V-3 CSA 2820 - 3-4 - - 3,5/6,5/10 - 2820 DAM G 1500 E 60Hz 240V-1 208V-3 CSA 3000 - 3-4 - - 6/9,5/15,5 - - DAM G 1500 E 60Hz 208V-1 480V-3 CSA 2820 - 3-4 3,5/7/10,5 4/7,5/11,5 - - 2820 DAM G 1500 E 60Hz 240V-1 480V-3 CSA 3000 - 3-4 5,3/10,7/16 5,8/11,7/17,5 - - - DAM G 1500 E 60Hz 208V-1 575V-3 CSA 2820 - 3-4 - - - 5/5,5/10,5 2820 DAM G 1500 E 60Hz 240V-1 575V-3 CSA 3000 - 3-4 - - - 5,5/11/16,5 - DAM G 2000 E 60Hz 208V-1 208V-3 CSA 4230 - 3-4 - - 5/9/14 - 4230 DAM G 2000 E 60Hz 240V-1 208V-3 CSA 4500 - 3-4 - - 5/9/14 - - DAM G 2000 E 60Hz 208V-1 480V-3 CSA 4230 - 3-4 5/10,5/15,5 5,5/11/16,5 - - 4230 DAM G 2000 E 60Hz 240V-1 480V-3 CSA 4500 - 3-4 8,2/16,3/24,5 8,8/17,7/26,5 - - - DAM G 2000 E 60Hz 208V-1 575V-3 CSA 4230 - 3-4 - - - 6,5/8/14,5 4230 DAM G 2000 E 60Hz 240V-1 575V-3 CSA 4500 - 3-4 - - - 8/16/24 - DAM G 2500 E 60Hz 208V-1 208V-3 CSA 4935 - 3-4 - - 5,5/9/14,5 - 4935 DAM G 2500 E 60Hz 240V-1 208V-3 CSA 5250 - 3-4 - - 5,5/9/14,4 - - DAM G 2500 E 60Hz 208V-1 480V-3 CSA 4935 - 3-4 6/12/18 6,5/13/19,5 - - 4935 DAM G 2500 E 60Hz 240V-1 480V-3 CSA 5250 - 3-4 9,3/18,7/28 10,2/20,3/30,5 - - - DAM G 2500 E 60Hz 208V-1 575V-3 CSA 4935 - 3-4 - - - 8/9,5/17,5 4935 DAM G 2500 E 60Hz 240V-1 575V-3 CSA 5250 - 3-4 - - - 9,5/19/28,5 - DAM G 3000 E 60Hz 208V-1 208V-3 CSA 5640 - 3-4 - - 6,5/8/14,5 - 5640 DAM G 3000 E 60Hz 240V-1 208V-3 CSA 6000 - 3-4 - - 6,5/8/14,5 - - DAM G 3000 E 60Hz 208V-1 480V-3 CSA 5640 - 3-4 6,/12/18 6,5/13/19,5 - - 5640 DAM G 3000 E 60Hz 240V-1 480V-3 CSA 6000 - 3-4 9,3/18,7/28 10,2/20,3/30,5 - - - DAM G 3000 E 60Hz 208V-1 575V-3 CSA 5640 - 3-4 - - - 9,5/9,5/19 5640 DAM G 3000 E 60Hz 240V-1 575V-3 CSA 6000 - 3-4 - - - 9,5/19/28,5 - DAM ECG 1000 E 60Hz 208V-1 208V-3 CSA 2415 - 3-4,2 - - 4/8/12 - 2415 DAM ECG 1000 E 60Hz 240V-1 208V-3 CSA 2550 - 3-4,2 - - 4/8/12 - - DAM ECG 1000 E 60Hz 208V-1 480V-3 CSA 2415 - 3-4,2 4/8/12 4,3/8,7/13 - - 2415 DAM ECG 1000 E 60Hz 240V-1 480V-3 CSA 2550 - 3-4,2 4/8/12 4,3/8,7/13 - - - DAM ECG 1000 E 60Hz 208V-1 575V-3 CSA 2415 - 3-4,2 - - - 4/8/12 2415 DAM ECG 1000 E 60Hz 240V-1 575V-3 CSA 2550 - 3-4,2 - - - 4/8/12 - DAM ECG 1500 E 60Hz 208V-1 208V-3 CSA 3220 - 3-4,2 - - 6/9,5/15,5 - 3220 DAM ECG 1500 E 60Hz 240V-1 208V-3 CSA 3400 - 3-4,2 - - 6/9,5/15,5 - - DAM ECG 1500 E 60Hz 208V-1 480V-3 CSA 3220 - 3-4,2 5,3/10,7/16 5,8/11,7/17,5 - - 3220 DAM ECG 1500 E 60Hz 240V-1 480V-3 CSA 3400 - 3-4,2 5,3/10,7/16 5,8/11,7/17,5 - - - DAM ECG 1500 E 60Hz 208V-1 575V-3 CSA 3220 - 3-4,2 - - - 5,5/11/16,5 3220 DAM ECG 1500 E 60Hz 240V-1 575V-3 CSA 3400 - 3-4,2 - - - 5,5/11/16,5 - DAM ECG 2000 E 60Hz 208V-1 208V-3 CSA 4830 - 3-4,2 - - 5/9/14 - 4830 DAM ECG 2000 E 60Hz 240V-1 208V-3 CSA 5100 - 3-4,2 - - 5/9/14 - - DAM ECG 2000 E 60Hz 208V-1 480V-3 CSA 4830 - 3-4,2 8,2/16,3/24,5 8,8/17,7/26,5 - - 4830 DAM ECG 2000 E 60Hz 240V-1 480V-3 CSA 5100 - 3-4,2 8,2/16,3/24,5 8,8/17,7/26,5 - - - DAM ECG 2000 E 60Hz 208V-1 575V-3 CSA 4830 - 3-4,2 - - - 8/16/24 4830 DAM ECG 2000 E 60Hz 240V-1 575V-3 CSA 5100 - 3-4,2 - - - 8/16/24 - DAM ECG 2500 E 60Hz 208V-1 208V-3 CSA 5635 - 3-4,2 - - 5,5/9/14,5 - 5635 DAM ECG 2500 E 60Hz 240V-1 208V-3 CSA 5950 - 3-4,2 - - 5,5/9/14,5 - - DAM ECG 2500 E 60Hz 208V-1 480V-3 CSA 5635 - 3-4,2 9,3/18,7/28 10,2/20,3/30,5 - - 5635 DAM ECG 2500 E 60Hz 240V-1 480V-3 CSA 5950 - 3-4,2 9,3/18,7/28 10,2/20,3/30,5 - - - DAM ECG 2500 E 60Hz 208V-1 575V-3 CSA 5635 - 3-4,2 - - - 9,5/19/28,5 5635 DAM ECG 2500 E 60Hz 240V-1 575V-3 CSA 5950 - 3-4,2 - - - 9,5/19/28,5 - DAM ECG 3000 E 60Hz 208V-1 208V-3 CSA 6440 - 3-4,2 - - 6,5/8/14,5 - 6440 DAM ECG 3000 E 60Hz 240V-1 208V-3 CSA 6800 - 3-4,2 - - 6,5/8/14,5 - - DAM ECG 3000 E 60Hz 208V-1 480V-3 CSA 6440 - 3-4,2 9,3/18,7/28 10,2/20,3/30,5 - - 6440 DAM ECG 3000 E 60Hz 240V-1 480V-3 CSA 6800 - 3-4,2 9,3/18,7/28 10,2/20,3/30,5 - - - DAM ECG 3000 E 60Hz 208V-1 575V-3 CSA 6440 - 3-4,2 - - - 9,5/19/28,5 6440 DAM ECG 3000 E 60Hz 240V-1 575V-3 CSA 6800 - 3-4,2 - - - 9,5/19/28,5 - Model Nominal Airflow
m³/hRecommended Installation Range
mHeating Capacity 80/60ºC (kW)
kWHeating Capacity 60/40ºC (kW)
kWHeating Capacity 50/40ºC
kWHeating Capacity 80/60ºC (Ventilation 208Vx1)
kWHeating Capacity 60/40ºC (Ventilation 208Vx1)
kWHeating Capacity 50/40ºC (Ventilation 208Vx1)
kWNominal Airflow 208V
m³/hDAM M 1000 P86 60Hz CSA 1660 2,5-3,5 7.46 - - 7.13 - - 1450 DAM M 1000 P64 60Hz CSA 1660 2,5-3,5 - 8.15 - - 7.82 - 1450 DAM M 1000 P54 60Hz CSA 1660 2,5-3,5 - - 8.12 - - 7.76 1450 DAM M 1500 P86 60Hz CSA 2490 2,5-3,5 14.26 - - 13.71 - - 2175 DAM M 1500 P64 60Hz CSA 2490 2,5-3,5 - 13.04 - - 12.51 - 2175 DAM M 1500 P54 60Hz CSA 2490 2,5-3,5 - - 13.66 - - 13.06 2175 DAM M 2000 P86 60Hz CSA 3320 2,5-3,5 20.65 - - 19.85 - - 2900 DAM M 2000 P64 60Hz CSA 3320 2,5-3,5 - 17.39 - - 16.68 - 2900 DAM M 2000 P54 60Hz CSA 3320 2,5-3,5 - - 17.76 - - 16.97 2900 DAM M 2500 P86 60Hz CSA 4150 2,5-3,5 26.92 - - 25.88 - - 3625 DAM M 2500 P64 60Hz CSA 4150 2,5-3,5 - 21.69 - - 20.8 - 3625 DAM M 2500 P54 60Hz CSA 4150 2,5-3,5 - - 23.16 - - 22.14 3625 DAM M 3000 P86 60Hz CSA 4980 2,5-3,5 33.23 - - 31.94 - - 4350 DAM M 3000 P64 60Hz CSA 4980 2,5-3,5 - 27.01 - - 25.91 - 4350 DAM M 3000 P54 60Hz CSA 4980 2,5-3,5 - - 28.35 - - 27.1 4350 DAM G 1000 P86 60Hz CSA 2190 3-4 10.86 - - 8.65 - - 1875 DAM G 1000 P64 60Hz CSA 2190 3-4 - 9.75 - - 9.36 - 1875 DAM G 1000 P54 60Hz CSA 2190 3-4 - - 9.87 - - 9.44 1875 DAM G 1500 P86 60Hz CSA 2920 3-4 15.76 - - 15.15 - - 2500 DAM G 1500 P64 60Hz CSA 2920 3-4 - 14.48 - - 13.89 - 2500 DAM G 1500 P54 60Hz CSA 2920 3-4 - - 15.3 - - 14.63 2500 DAM G 2000 P86 60Hz CSA 4380 3-4 24.51 - - 23.57 - - 3750 DAM G 2000 P64 60Hz CSA 4380 3-4 - 20.86 - - 20.02 - 3750 DAM G 2000 P54 60Hz CSA 4380 3-4 - - 21.64 - - 20.69 3750 DAM G 2500 P86 60Hz CSA 5110 3-4 30.64 - - 29.46 - - 4375 DAM G 2500 P64 60Hz CSA 5110 3-4 - 24.9 - - 23.88 - 4375 DAM G 2500 P54 60Hz CSA 5110 3-4 - - 26.88 - - 25.7 4375 DAM G 3000 P86 60Hz CSA 5840 3-4 36.73 - - 35.3 - - 5000 DAM G 3000 P64 60Hz CSA 5840 3-4 - 30.03 - - 28.79 - 5000 DAM G 3000 P54 60Hz CSA 5840 3-4 - - 31.79 - - 30.38 5000 DAM ECG 1000 P86 60Hz CSA 2500 3-4,2 11.74 - - 11.34 - - 2550 DAM ECG 1000 P64 60Hz CSA 2500 3-4,2 - 10.59 - - 10.21 - 2550 DAM ECG 1000 P54 60Hz CSA 2500 3-4,2 - - 10.8 - - 10.37 2550 DAM ECG 1500 P86 60Hz CSA 3340 3-4,2 17.09 - - 16.47 - - 3400 DAM ECG 1500 P64 60Hz CSA 3340 3-4,2 - 15.78 - - 15.17 - 3400 DAM ECG 1500 P54 60Hz CSA 3340 3-4,2 - - 16.8 - - 16.1 3400 DAM ECG 2000 P86 60Hz CSA 5000 3-4,2 26.54 - - 25.61 - - 5100 DAM ECG 2000 P64 60Hz CSA 5000 3-4,2 - 22.7 - - 21.84 - 5100 DAM ECG 2000 P54 60Hz CSA 5000 3-4,2 - - 23.71 - - 22.76 5100 DAM ECG 2500 P86 60Hz CSA 5840 3-4,2 32.25 - - 32.04 - - 5950 DAM ECG 2500 P64 60Hz CSA 5840 3-4,2 - 27.14 - - 26.1 - 5950 DAM ECG 2500 P54 60Hz CSA 5840 3-4,2 - - 29.51 - - 28.29 5950 DAM ECG 3000 P86 60Hz CSA 6680 3-4,2 39.9 - - 38.42 - - 6800 DAM ECG 3000 P64 60Hz CSA 6680 3-4,2 - 32.77 - - 31.49 - 6800 DAM ECG 3000 P54 60Hz CSA 6680 3-4,2 - - 34.96 - - 33.47 6800
 - Spain - Barcelona/02.jpg "Dam - Twin System - Chain Store - FNAC (CC LIlla Diagonal) - Spain - Barcelona-02.jpg")
 - Spain - Barcelona/02.jpg "Dam - - Chain Store - Kiehls (CC LIlla Diagonal) - Spain - Barcelona-02.jpg")
 - Spain - Barcelona/03 [FF].jpg "Dam - - Chain Store - Kiehls (CC LIlla Diagonal) - Spain - Barcelona-03 .jpg")
 - Sweden - Stockholm/01.jpg "Dam - Twin System, Color, Clever - Chain Clothes - H&M (Drottninggatan) - Sweden - Stockholm-01.jpg")
Free hanging mounting
False Ceiling Frame Kit
