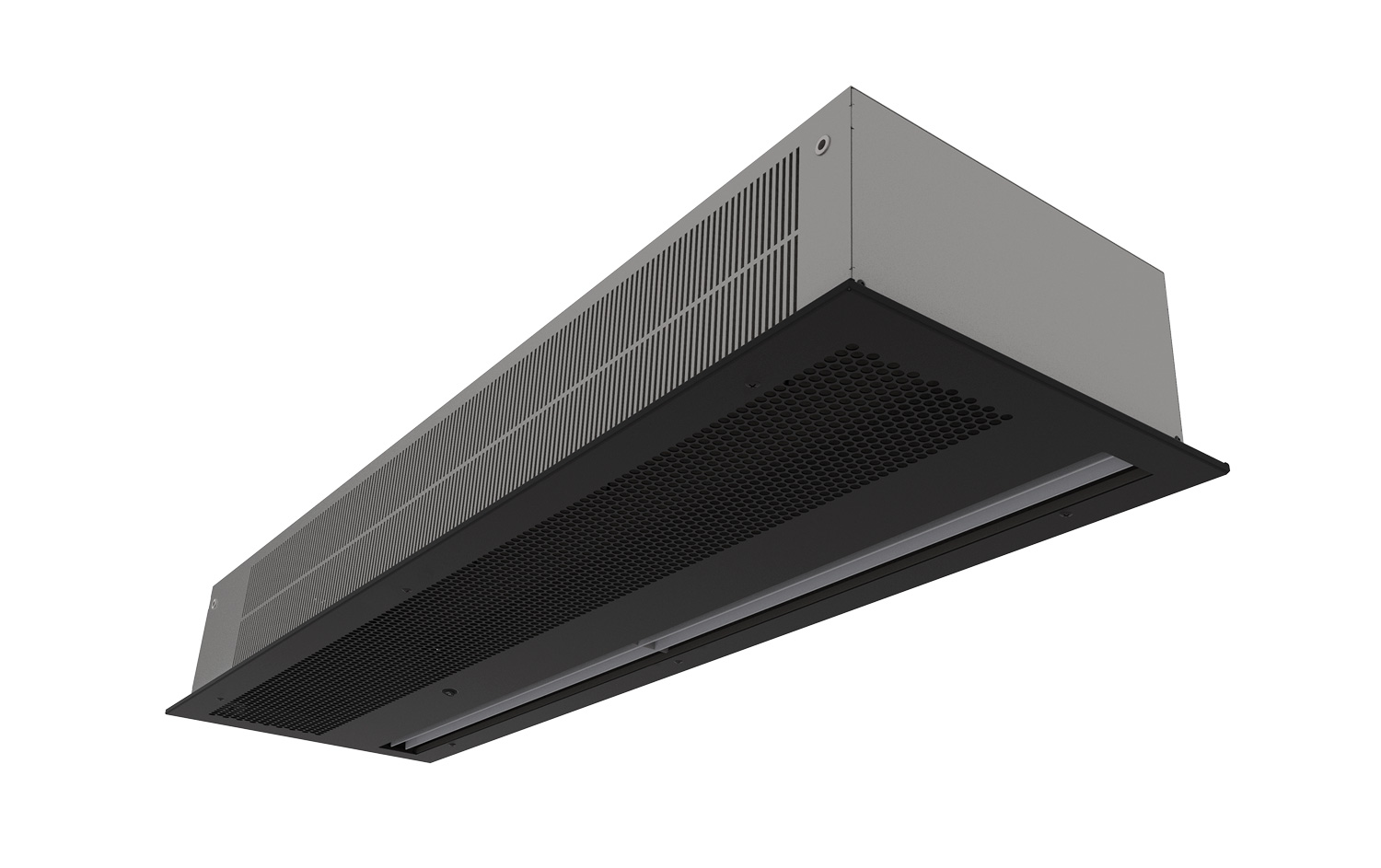

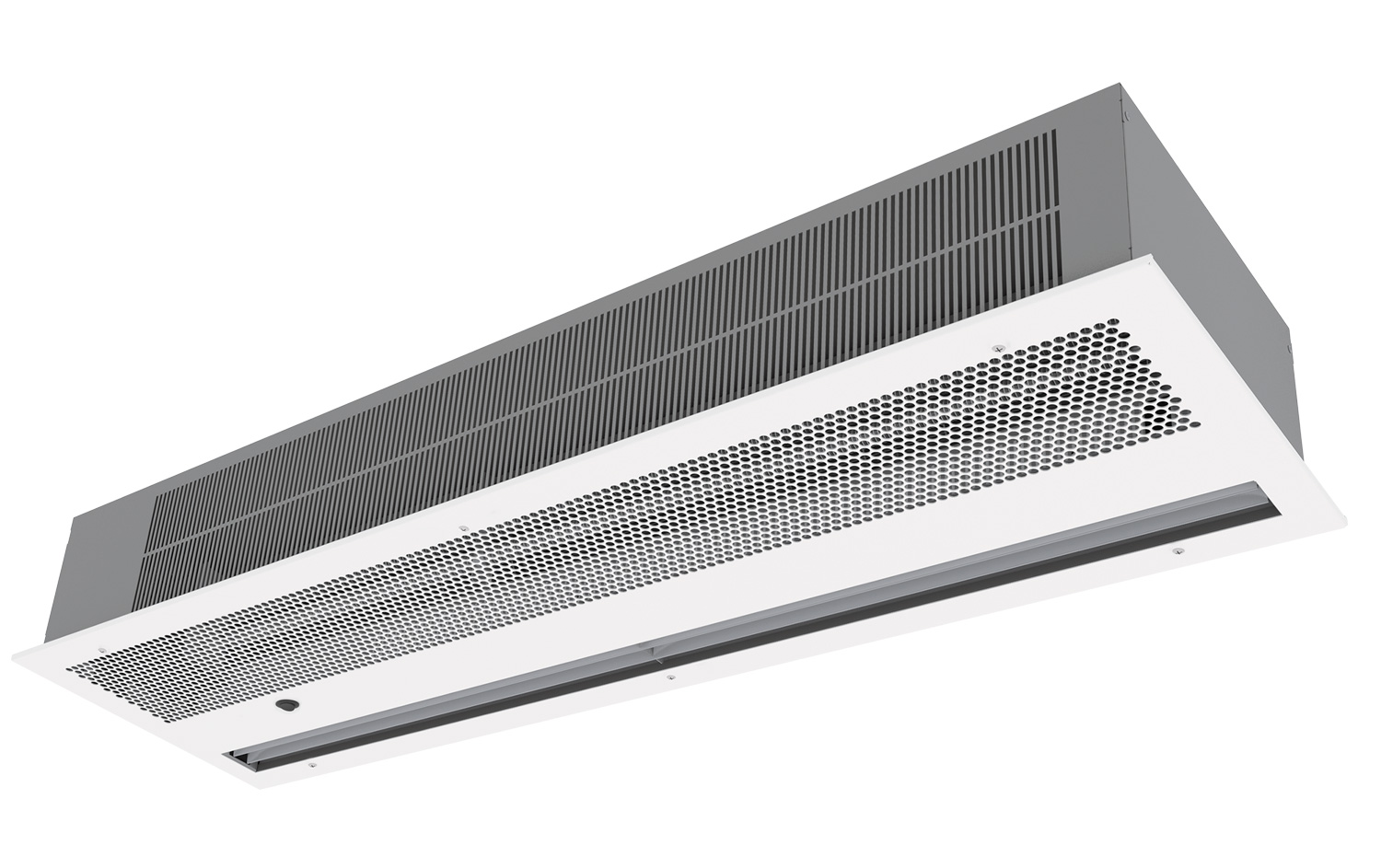

Air curtain Recessed Optima Switch

The Optima Switch Recessed air curtain is designed to blend seamlessly into false ceilings, delivering an effective and elegant solution for spaces that require comfort without adding visible elements. Its solid construction and regenerable micro-perforated grille ensure reliable performance with minimal maintenance and a completely clean aesthetic.

Inside, the linear diffusers with airfoil blades and low-noise tangential fans with “twisted” profile turbines work smoothly to provide a uniform, quiet airflow. Also available in an air-only version, the Optima Switch Recessed strikes the perfect balance between performance, efficiency, and discretion. With integrated two-speed control and compatibility with a door contact, it adapts effortlessly to the daily flow of the space.



Basic Specifications
    Maximum range
2,8 m
    Airflow
1700 - 3200 m3/h
    Length
1 m a 2 m
    Fans
Tangential 2-speed with low noise twisted profile turbine
    Heating types
A : unheated
    Casing
Galvanised steel

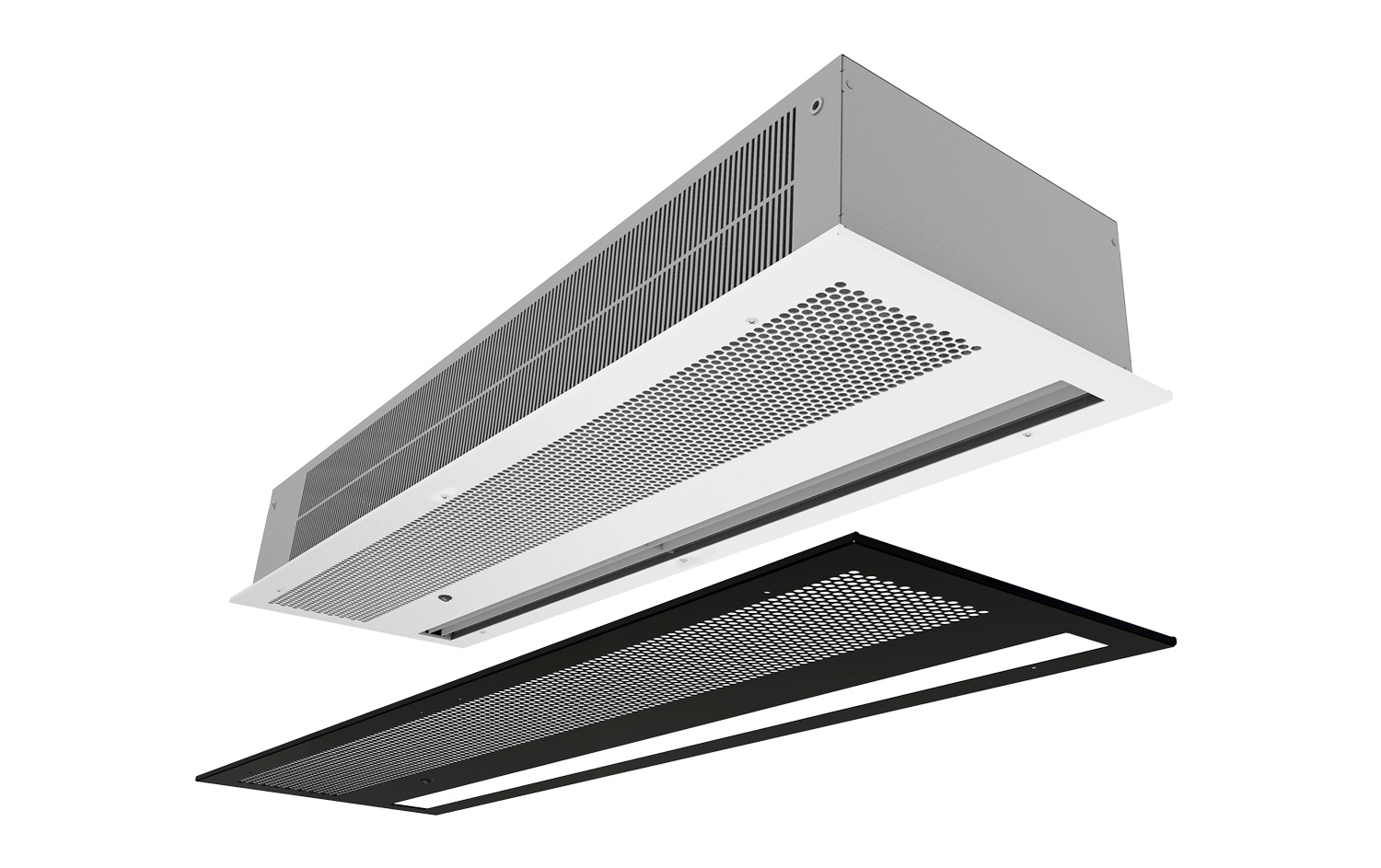

    Grille type
Self-supporting frame with integrated inlet grille
    Outlet vanes
Aluminium, airfoil type
    Finishes
Grille frame RAL 9016 or 9005 (standard)  |  Other colors on request
    Control

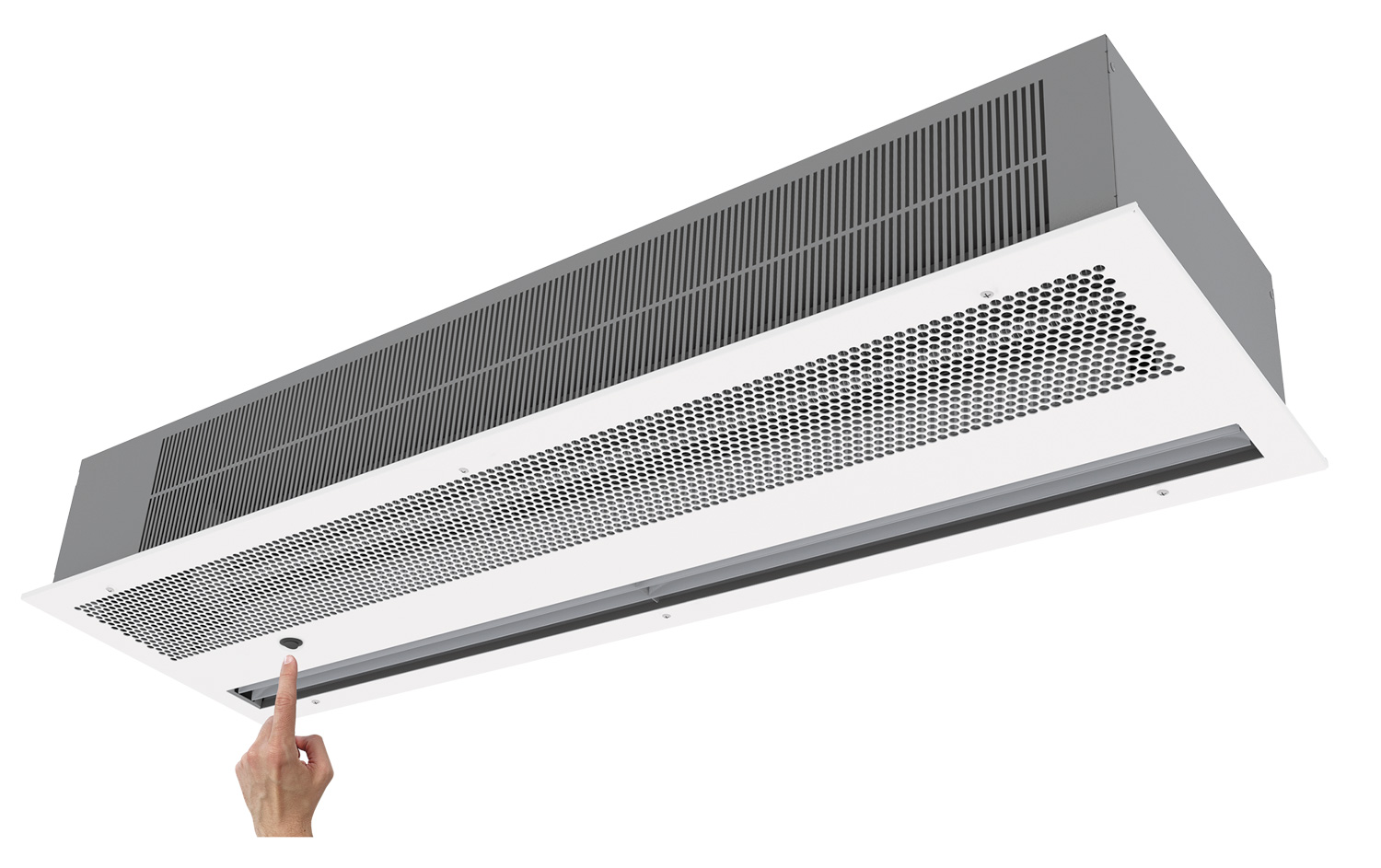

* 2-speed in-built switch
[*] Possibility to connect a door contact and/or an external OFF.
Technical Data  Filters
 Filters
Heating
Unheated
Length
1000
1500
2000
All
Dimensions
Air curtain Recessed Optima Switch - Dimensions
Accessories
Airtècnics offers a wide range of accessories designed to complement and optimize any air curtain installation, including brackets, sensors, smart control solutions, and customization options tailored to each project.
Silentblock - Ceiling
Support - Wall
Support ceiling angle with silentblock
Support ceiling silentblock threated nuts M8
Set wall rail support 640 WINDBOX MG, Vari, RUND, FLY KLXL
Set wall rail support 640 + VR
Support wall omega OPTIMA/ARIS
Photo Gallery
Explore real installation projects and discover our solutions in different spaces worldwide.
Videos
Explore product videos, technology insights, and company presentations showcasing our solutions.
Downloads
Want to learn more about our products? Explore our marketing resources, technical documentation, and design files prepared for you.
   Catalogues and datasheet
   BIM Revit
