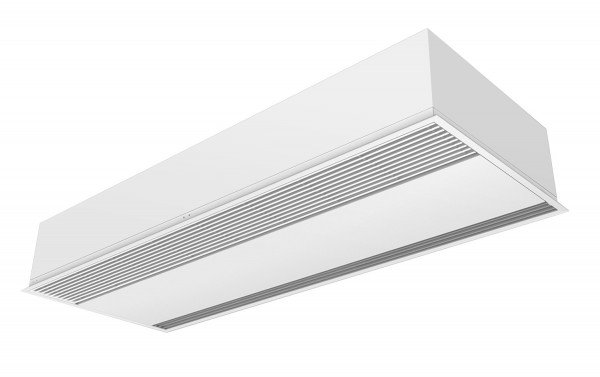

Air curtain Recessed Windbox

WINDBOX is a compact and robust air curtain from our standard range with a timeless and pleasing design. It is specially designed for installation in false ceilings. It is an air curtain suitable for all types of commercial and industrial entrances.

Air curtain Recessed Windbox
Air curtain Recessed Windbox
Air curtain Recessed Windbox
Previous Next


  • Self-supporting casing construction made of galvanized steel plate, ready to be installed recessed in a false ceiling.
  • Inlet grille (free of maintenance) made with aluminium profiles and blow-out nozzle, integrated in a single white frame colour RAL 9016. Other colours are available on request.
  • Anodized aluminium outlet vanes, airfoil shaped, adjustable in both directions.
  • Double-inlet centrifugal fans driven by an external rotor motor and low noise level. 5-speed selector. EC models assembled with very low consumption efficiency fans.
  • “P” type with water heated coil. “E” type with electrical shielded elements, three stages with integrated regulation. “A” type without heating, air only. Optional expansion DX coil.
  • Includes Plug&Play control with 7m RJ45 cable and infrared remote control. Optional: Clever control (programmable, automatic, intelligent, energy saving, Modbus RTU for BMS…)

Datasheet Recessed Windbox
Recessed Air Curtains
Air Curtains Catalogue 2019

 BIM Files
 Request more information
  • 50Hz
  • 60Hz
    • Unheated
    • Electrical Heating
    • Water Heating
    Model
    Nominal Airflow
    mÂł/h
    Recommended Installation Height
    m
    RM 1000 A18002,5-3,5
    RM 1500 A27002,5-3,5
    RM 2000 A36002,5-3,5
    RM 2500 A45002,5-3,5
    RECM 1000 A18402,5-3,8
    RECM 1500 A27602,5-3,8
    RECM 2000 A36802,5-3,8
    RECM 2500 A46002,5-3,8
    RG 1000 A24003-4
    RG 1500 A32003-4
    RG 2000 A48003-4
    RG 2500 A56003-4
    RECG 1000 A27003-4,2
    RECG 1500 A36003-4,2
    RECG 2000 A54003-4,2
    RECG 2500 A63003-4,2
    Model
    Nominal Airflow
    mÂł/h
    Electrical Heating Capacity 400Vx3
    kW
    Recommended Installation Height
    m
    RM 1000 E18003/6/92,5-3,5
    RM 1500 E27004/8/122,5-3,5
    RM 2000 E36006/12/182,5-3,5
    RM 2500 E45006/12/182,5-3,5
    RECM 1000 E18403/6/92,5-3,8
    RECM 1500 E27604/8/122,5-3,8
    RECM 2000 E36806/12/182,5-3,8
    RECM 2500 E46006/12/182,5-3,8
    RG 1000 E24005/10/153-4
    RG 1500 E32007,5/15/22,53-4
    RG 2000 E480010/20/303-4
    RG 2500 E560010/20/303-4
    RECG 1000 E27005/10/153-4,2
    RECG 1500 E36007,5/15/22,53-4,2
    RECG 2000 E540010/20/303-4,2
    RECG 2500 E630010/20/303-4,2
    Model
    Nominal Airflow
    mÂł/h
    Heating Capacity 80/60ÂșC
    kW
    Heating Capacity 60/40ÂșC
    kW
    Heating Capacity 50/40ÂșC
    kW
    Recommended Installation Height
    m
    RM 1000 P641660-8,56-2,5-3,5
    RM 1000 P541660--8,522,5-3,5
    RM 1000 P8616609,17--2,5-3,5
    RM 1500 P642490-13,69-2,5-3,5
    RM 1500 P542490--14,342,5-3,5
    RM 1500 P86249014,26--2,5-3,5
    RM 2000 P643320-18,26-2,5-3,5
    RM 2000 P543320--18,652,5-3,5
    RM 2000 P86332020,65--2,5-3,5
    RM 2500 P644150-22,12-2,5-3,5
    RM 2500 P544150--24,322,5-3,5
    RM 2500 P86415026,92--2,5-3,5
    RECM 1000 P641720-8,77-2,5-3,8
    RECM 1000 P541720--8,742,5-3,8
    RECM 1000 P8617209,38--2,5-3,8
    RECM 1500 P642580-14,02-2,5-3,8
    RECM 1500 P542580--14,712,5-3,8
    RECM 1500 P86258014,58--2,5-3,8
    RECM 2000 P643440-18,7-2,5-3,8
    RECM 2000 P543440--19,132,5-3,8
    RECM 2000 P86344021,12--2,5-3,8
    RECM 2500 P644300-23,33-2,5-3,8
    RECM 2500 P544300--24,952,5-3,8
    RECM 2500 P86430027,53--2,5-3,8
    RG 1000 P642250-10,42-3-4
    RG 1000 P542250--10,563-4
    RG 1000 P86225011,04--3-4
    RG 1500 P643000-15,47-3-4
    RG 1500 P543000--16,373-4
    RG 1500 P86300016,02--3-4
    RG 2000 P644500-22,29-3-4
    RG 2000 P544500--23,153-4
    RG 2000 P86450024,92--3-4
    RG 2500 P645250-26,61-3-4
    RG 2500 P545250--28,763-4
    RG 2500 P86525031,16--3-4
    RECG 1000 P642550-11,27-3-4,2
    RECG 1000 P542550--11,53-4,2
    RECG 1000 P86255011,89--3-4,2
    RECG 1500 P643400-16,77-3-4,2
    RECG 1500 P543400--17,863-4,2
    RECG 1500 P86340017,29--3-4,2
    RECG 2000 P645100-24,14-3-4,2
    RECG 2000 P545100--25,243-4,2
    RECG 2000 P86510026,86--3-4,2
    RECG 2500 P645950-28,84-3-4,2
    RECG 2500 P545950--31,383-4,2
    RECG 2500 P86595033,63--3-4,2
    • Unheated
    • Electrical Heating
    • Water Heating
    Model
    Nominal Airflow
    mÂł/h
    Recommended Installation Height
    m
    RECM 1000 A18402,5-3,8
    RECM 1500 A27602,5-3,8
    RECM 2000 A36802,5-3,8
    RECM 2500 A46002,5-3,8
    RECG 1000 A27003-4,2
    RECG 1500 A36003-4,2
    RECG 2000 A54003-4,2
    RECG 2500 A63003-4,2
    Model
    Nominal Airflow
    mÂł/h
    Electrical Heating Capacity 400Vx3
    kW
    Recommended Installation Height
    m
    RECM 1000 E18403/6/92,5-3,8
    RECM 1500 E27604/8/122,5-3,8
    RECM 2000 E36806/12/182,5-3,8
    RECM 2500 E46006/12/182,5-3,8
    RECG 1000 E27005/10/153-4,2
    RECG 1500 E36007,5/15/22,53-4,2
    RECG 2000 E540010/20/303-4,2
    RECG 2500 E630010/20/303-4,2
    Model
    Nominal Airflow
    mÂł/h
    Heating Capacity 80/60ÂșC
    kW
    Heating Capacity 60/40ÂșC
    kW
    Heating Capacity 50/40ÂșC
    kW
    Recommended Installation Height
    m
    RECM 1000 P641720-8,77-2,5-3,8
    RECM 1000 P541720--8,742,5-3,8
    RECM 1000 P8617209,38--2,5-3,8
    RECM 1500 P642580-14,02-2,5-3,8
    RECM 1500 P542580--14,712,5-3,8
    RECM 1500 P86258014,58--2,5-3,8
    RECM 2000 P643440-18,7-2,5-3,8
    RECM 2000 P543440--19,132,5-3,8
    RECM 2000 P86344021,12--2,5-3,8
    RECM 2500 P644300-23,33-2,5-3,8
    RECM 2500 P544300--24,952,5-3,8
    RECM 2500 P86430027,53--2,5-3,8
    RECG 1000 P642550-11,27-3-4,2
    RECG 1000 P542550--11,53-4,2
    RECG 1000 P86255011,89--3-4,2
    RECG 1500 P643400-16,77-3-4,2
    RECG 1500 P543400--17,863-4,2
    RECG 1500 P86340017,29--3-4,2
    RECG 2000 P645100-24,14-3-4,2
    RECG 2000 P545100--25,243-4,2
    RECG 2000 P86510026,86--3-4,2
    RECG 2500 P645950-28,84-3-4,2
    RECG 2500 P545950--31,383-4,2
    RECG 2500 P86595033,63--3-4,2
  • Images
  • Dimensions
  • 3D View
Air curtain Recessed Windbox - Dimensions
Products
Air Curtains
Air Purifier and Disinfection Units
Air Handling Units
Heat Recovery Units
Ventilation Units
Axial Fans
Radial fans
Centrifugal Fans
In Line Fans
Exhaust Fans Units
Cross-Flow Fans
Fan Heaters
Filters and Filter Units
Dampers and Shutters
Rotary Actuators
Regulation
Pressure Switches and Sensors

Air Curtains
Standard Air Curtains
Recessed Air Curtains
Decorative, Bespoke and Customized Air Curtains
Air curtains with Disinfection and Purification System
Heat Pump and Energy Saving Air Curtains
Industrial Air Curtains and Cold Store Air Curtains
Insect control Air Curtains
Revolving Door and Tailor Made Air Curtains
Economic Low Cost Air Curtains

Technology
What is an air curtain?
How air curtains work?
Advantages and benefits of air curtains
Heat pump air curtains
EC air curtains
AirtĂšcnics air curtains
Ventilation

Downloads
Air curtains catalogues
Ventilation catalogues
BIM Air Curtains
Air curtains price list
Technical documentation
Quality certificates

Featured content
Clever advanced control
Air curtains selection program
Air curtains installations: References
Air curtains photo gallery
About us
AirtĂšcnics history
Rosenberg group
Contact
Outlet


Related Websites
Air Curtains
Rideaux d’air
Actuadores
Cortinas de aire
Luftschleier
EC Fans
Air Curtain Manufacturer
Barriere d’aria
Recuperadores de calor
Air Curtain Supplier
Luchtgordijnen
Rite Calidad Aire
Ilmaverho
Kurtyny Powietrzne
+34 93 715 99 88 +34 93 715 99 88
airtecnics@airtecnics.com

Request more information

The message been successfully submitted.

Request more information

If you want more information, fill the form and we contact with you.






Check this box if you like to receive professional information.

In accordance with the established RGPD (General Data Protection Regulation), we inform you that your personal data collected by means of this form will be incorporated in a file held by MOTORS I VENTILADORS, S.L., which has the purpose of enabling the management and commercial relations, informative or contractual and in any form and medium, including electronic means, about the products and/or services you are interested in. Your data will not be disclosed to third parties without your consent expressly stated, except in cases provided by law or requisitions of the competent public Administration.

You therefore expressly authorise us to use and process your personal data for the aforementioned purposes.

At any time, you may exercise your rights of access, rectification, erasure, restriction of processing, portability and object of your personal data processing. We request that you notify us to MOTORS I VENTILADORS, S.L. C/ Conca de Barberà, 6, Pol. Ind. Pla de la Bruguera 08211 CASTELLAR DEL VALLÈS (Barcelona) or send an email to the following address airtecnics@airtecnics.com

I accept and give my consent for the abovementioned purposes. (*)
