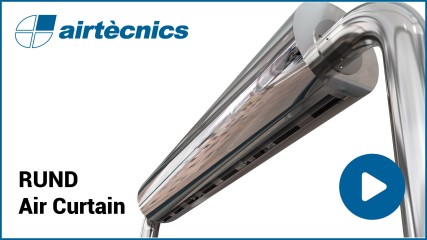

Air curtain Rund with Kleenfan technology

Rund air curtain with exclusive unique design, cylindrical shape. Elegant and designed for architectural spaces with careful details. Equipped with Kleenfan air disinfection and purification technology, which, through the action of photocatalysis, eliminates the presence of viruses, bacteria and other contaminating components from the air.

Air curtain Rund with Kleenfan technology


  • Kleenfan technology with photocatalytic disinfectant action fans. UV-A rays act on the titanium dioxide in the turbine generating Reactive Oxygen Species (ROS) that, through oxidation/reduction reactions, eliminate a wide range of organisms reducing them up to 99.9%.
    It mineralizes most of the pollutants present in urban areas produced by vehicles and industry (NOx, SOx, COx, formaldehydes, VOCs, etc.).
  • Air quality indicator with 4 status levels and hydrogen peroxide biocide cartridge replacement alarm (approximately every 3 months).
  • Includes Advanced Clever Control with disinfection program running 24 hours a day, 4-level indicator of air quality and replacement alarm of the hydrogen peroxide biocidal cartridge (about 3 months duration, depending on conditions). Plug & Play, programmable, intelligent, automatic, energy saving, Modbus RTU by PLC…).
  • Decorative cylindrical air curtain for vertical or horizontal installation.
  • Faceted self-supporting casing construction made of galvanized plated steel, finished in structural epoxy-polyester painting white RAL9016 or silver grey RAL9006 as standard. Other colours or stainless steel are available on request.
  • Large faceted inlet grille avoiding intensive maintenance..
  • Anodized aluminium outlet vanes, airfoil shaped, adjustable from 0 to 15º each side.
  • Double-inlet EC centrifugal fans driven by an external rotor motor and very low consumption and noise level. 5-speed selector.
  • “P” type with water heated coil. “E” type with electrical shielded elements, three stages with integrated regulation. “A” type without heating, air only. Optional expansion DX coil.

Datasheet Rund FC
Air Curtains Catalogue 2019

 BIM Files
 Request more information
  • 50Hz
  • 60Hz
    • Unheated
    • Electrical Heating
    • Water Heating
    Model
    Nominal Airflow
    mÂł/h
    Recommended Installation Height
    m
    RUND ECG 1000 A FC27003-4,2
    RUND ECG 1500 A FC36003-4,2
    RUND ECG 2000 A FC54003-4,2
    RUND ECG 2500 A FC63003-4,2
    RUND ECG 3000 A FC72003-4,2
    Model
    Nominal Airflow
    mÂł/h
    Electrical Heating Capacity 400Vx3
    kW
    Recommended Installation Height
    m
    RUND ECG 1000 E FC27005/10/153-4,2
    RUND ECG 1500 E FC36007,5/15/22,53-4,2
    RUND ECG 2000 E FC540010/20/303-4,2
    RUND ECG 2500 E FC630010/20/303-4,2
    RUND ECG 3000 E FC720010/20/303-4,2
    Model
    Nominal Airflow
    mÂł/h
    Heating Capacity 80/60ÂșC
    kW
    Heating Capacity 60/40ÂșC
    kW
    Heating Capacity 50/40ÂșC
    kW
    Recommended Installation Height
    m
    RUND ECG 1000 P86 FC255011.89--3-4,2
    RUND ECG 1500 P86 FC340017.29--3-4,2
    RUND ECG 2000 P86 FC510026.86--3-4,2
    RUND ECG 2500 P86 FC595033.63--3-4,2
    RUND ECG 3000 P86 FC680040.34--3-4,2
    RUND ECG 1000 P64 FC2550-11.27-3-4,2
    RUND ECG 1500 P64 FC3400-16.77-3-4,2
    RUND ECG 2000 P64 FC5100-24.14-3-4,2
    RUND ECG 2500 P64 FC5950-28.84-3-4,2
    RUND ECG 3000 P64 FC6800-34.81-3-4,2
    RUND ECG 1000 P54 FC2550--11.53-4,2
    RUND ECG 1500 P54 FC3400--17.863-4,2
    RUND ECG 2000 P54 FC5100--25.243-4,2
    RUND ECG 2500 P54 FC5950--31.383-4,2
    RUND ECG 3000 P54 FC6800--37.163-4,2
    • Unheated
    • Electrical Heating
    • Water Heating
    Model
    Nominal Airflow
    mÂł/h
    Recommended Installation Height
    m
    RUND ECG 1000 A FC27003-4,2
    RUND ECG 1500 A FC36003-4,2
    RUND ECG 2000 A FC54003-4,2
    RUND ECG 2500 A FC63003-4,2
    RUND ECG 3000 A FC72003-4,2
    Model
    Nominal Airflow
    mÂł/h
    Electrical Heating Capacity 400Vx3
    kW
    Recommended Installation Height
    m
    RUND ECG 1000 E FC27005/10/153-4,2
    RUND ECG 1500 E FC36007,5/15/22,53-4,2
    RUND ECG 2000 E FC540010/20/303-4,2
    RUND ECG 2500 E FC630010/20/303-4,2
    RUND ECG 3000 E FC720010/20/303-4,2
    Model
    Nominal Airflow
    mÂł/h
    Heating Capacity 80/60ÂșC
    kW
    Heating Capacity 60/40ÂșC
    kW
    Heating Capacity 50/40ÂșC
    kW
    Recommended Installation Height
    m
    RUND ECG 1000 P86 FC255011.89--3-4,2
    RUND ECG 1500 P86 FC340017.29--3-4,2
    RUND ECG 2000 P86 FC510026.86--3-4,2
    RUND ECG 2500 P86 FC595033.63--3-4,2
    RUND ECG 3000 P86 FC680040.34--3-4,2
    RUND ECG 1000 P64 FC2550-11.27-3-4,2
    RUND ECG 1500 P64 FC3400-16.77-3-4,2
    RUND ECG 2000 P64 FC5100-24.14-3-4,2
    RUND ECG 2500 P64 FC5950-28.84-3-4,2
    RUND ECG 3000 P64 FC6800-34.81-3-4,2
    RUND ECG 1000 P54 FC2550--11.53-4,2
    RUND ECG 1500 P54 FC3400--17.863-4,2
    RUND ECG 2000 P54 FC5100--25.243-4,2
    RUND ECG 2500 P54 FC5950--31.383-4,2
    RUND ECG 3000 P54 FC6800--37.163-4,2
  • Dimensions
  • 3D View
Air curtain Rund with Kleenfan technology - Dimensions
