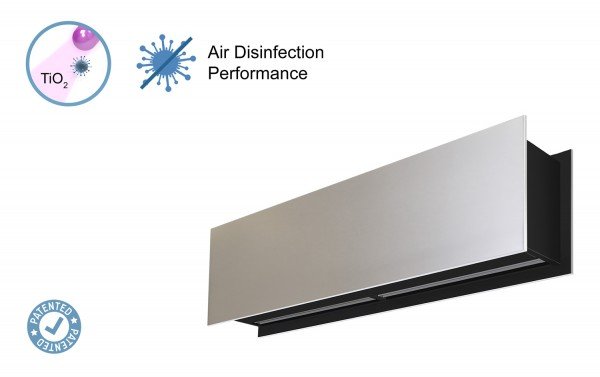

Air curtain Zen with Kleenfan Technology
ZEN air curtain, decorative and elegant, with customizable panels and equipped with Kleenfan photocatalytic technology to disinfect and purify the air. It is the most adaptable and versatile air curtain in the range. Kleenfan technology uses photocatalytic fans: long-life UV-A LED light acts on the titanium dioxide in the impeller, generating Reactive Oxygen Species (ROS) that deactivate a wide range of pathogenic microorganisms (viruses and bacteria) through oxidation-reduction reactions. It also mineralizes most urban air pollutants generated by traffic and industry (NOx, SOx, COx, VOCs, etc.).
Decorative air curtain with a contemporary architectural style, featuring a minimalist and elegant design that blends seamlessly into any environment while offering endless customization possibilities. The panels can incorporate logos, lighting, branding, safety or information signage, graphics, images or clocks, according to customer specifications. Standard anodized aluminium front panels, with optional textured, brushed or mirror-finish stainless steel panels, as well as other materials such as untreated, painted or aged galvanized steel, wood, smooth or textured plastics, and more. Central galvanized steel casing finished in standard forge black coating; other colours available on request. Linear discharge outlet with anodized aluminium airfoil blades, adjustable in both directions. Double-inlet centrifugal fans with low-noise, low-energy EC external rotor motors. P models include a hot water coil; E models feature a three-stage electric heater with integrated control; A models provide ambient air only, without heating. An optional DX direct expansion coil is also available. Advanced Plug&Play control included: Advanced PRO controller with LCD display and built-in thermostat, door contact, 7 m RJ11 cable and remote control. Optional Clever PRO intelligent control (automatic, programmable, Modbus via PLC, timer, etc.).
- Kleenfan technology with photocatalytic purificant action fans. UV-A rays, from the long-life led, act on the titanium dioxide of the turbine generation Reactive Oxygen Species (ROS) than, through oxidation /reduction reactions, inactivate wide range of pathogenic microorganisms (viruses and bacteria). It mineralizes most of the pollutants present in urban areas produced by vehicles and industry (NOx, SOx, COx, formaldehydes, VOCs, etc.).
- Decorative air curtain in contemporary architectural style. Its minimalist and smart design integrates in any environment and offers infinite options to customize.
- The panels can include logos, lighting, signage, safety or information signs, graphics, pictures, clocks, all according to customer specifications.
- Front anodized aluminium panels. Optionally manufactured in brushed or mirror polished stainless steel. Other materials are possible, such as galvanized steel, smooth or texturated skinplate, wood, etc.
- Central structure made of galvanized steel finished in black forge as standard. Other colours are available on request.
- Anodized aluminium outlet vanes, airfoil shaped, adjustable in both directions.
- EC Double-inlet centrifugal fans driven by an external rotor motor and low noise level, with very low consumption efficency fans.
- “P” type with water heated coil. “E” type with electrical shielded elements, three stages with integrated regulation. “A” type without heating, air only. Optional expansion DX coil.
- Advanced Plug&Play control. Includes: Advanced PRO control with LCD display and integrated thermostat, door contact, 7m RJ11 cable and remote control. Optional: intelligent Clever Pro Control (automatic, programmable, ModBus for PKC, timer, etc.)
Model Nominal Airflow
m³/hRecommended Installation Range
mZEN ECG 1000 A FC 2700 3-4,2 ZEN ECG 1500 A FC 3600 3-4,2 ZEN ECG 2000 A FC 5400 3-4,2 ZEN ECG 2500 A FC 6300 3-4,2 Model Nominal Airflow
m³/hElectrical Heating Capacity 400Vx3
kWRecommended Installation Range
mZEN ECG 1000 E FC 2700 5/10/15 3-4,2 ZEN ECG 1500 E FC 3600 7,5/15/22,5 3-4,2 ZEN ECG 2000 E FC 5400 10/20/30 3-4,2 ZEN ECG 2500 E FC 6300 10/20/30 3-4,2 Model Nominal Airflow
m³/hRecommended Installation Range
mHeating Capacity 80/60ºC (kW)
kWHeating Capacity 60/40ºC (kW)
kWHeating Capacity 50/40ºC
kWZEN ECG 1000 P86 FC 2550 3-4,2 11.89 - - ZEN ECG 1500 P86 FC 3400 3-4,2 17.29 - - ZEN ECG 2000 P86 FC 5100 3-4,2 26.86 - - ZEN ECG 2500 P86 FC 5950 3-4,2 33.63 - - ZEN ECG 1000 P64 FC 2550 3-4,2 - 11.27 - ZEN ECG 1500 P64 FC 3400 3-4,2 - 16.77 - ZEN ECG 2000 P64 FC 5100 3-4,2 - 24.14 - ZEN ECG 2500 P64 FC 5950 3-4,2 - 28.84 - ZEN ECG 1000 P54 FC 2550 3-4,2 - - 11.5 ZEN ECG 1500 P54 FC 3400 3-4,2 - - 17.86 ZEN ECG 2000 P54 FC 5100 3-4,2 - - 25.24 ZEN ECG 2500 P54 FC 5950 3-4,2 - - 31.38 Model Nominal Airflow
m³/hRecommended Installation Range
mZEN ECG 1000 A FC 2700 3-4,2 ZEN ECG 1500 A FC 3600 3-4,2 ZEN ECG 2000 A FC 5400 3-4,2 ZEN ECG 2500 A FC 6300 3-4,2 Model Nominal Airflow
m³/hElectrical Heating Capacity 400Vx3
kWRecommended Installation Range
mZEN ECG 1000 E FC 2700 5/10/15 3-4,2 ZEN ECG 1500 E FC 3600 7,5/15/22,5 3-4,2 ZEN ECG 2000 E FC 5400 10/20/30 3-4,2 ZEN ECG 2500 E FC 6300 10/20/30 3-4,2 Model Nominal Airflow
m³/hRecommended Installation Range
mHeating Capacity 80/60ºC (kW)
kWHeating Capacity 60/40ºC (kW)
kWHeating Capacity 50/40ºC
kWZEN ECG 1000 P86 FC 2550 3-4,2 11.89 - - ZEN ECG 1500 P86 FC 3400 3-4,2 17.29 - - ZEN ECG 2000 P86 FC 5100 3-4,2 26.86 - - ZEN ECG 2500 P86 FC 5950 3-4,2 33.63 - - ZEN ECG 1000 P64 FC 2550 3-4,2 - 11.27 - ZEN ECG 1500 P64 FC 3400 3-4,2 - 16.77 - ZEN ECG 2000 P64 FC 5100 3-4,2 - 24.14 - ZEN ECG 2500 P64 FC 5950 3-4,2 - 28.84 - ZEN ECG 1000 P54 FC 2550 3-4,2 - - 11.5 ZEN ECG 1500 P54 FC 3400 3-4,2 - - 17.86 ZEN ECG 2000 P54 FC 5100 3-4,2 - - 25.24 ZEN ECG 2500 P54 FC 5950 3-4,2 - - 31.38
