Air curtain Zen
Decorative, minimalist and elegant, ZEN air curtain is the favourite of architects and designers to include in their building projects. Its smart design and high performance is perfect to blend with any building’s internal or external aesthetics, being also an active part of decoration or premises environment. ZEN air curtain offers infinite possibilities of customization, how far does your imagination go?
The Zen air curtain has obtained CSA certification according to UL and CSA standards for the North American market.

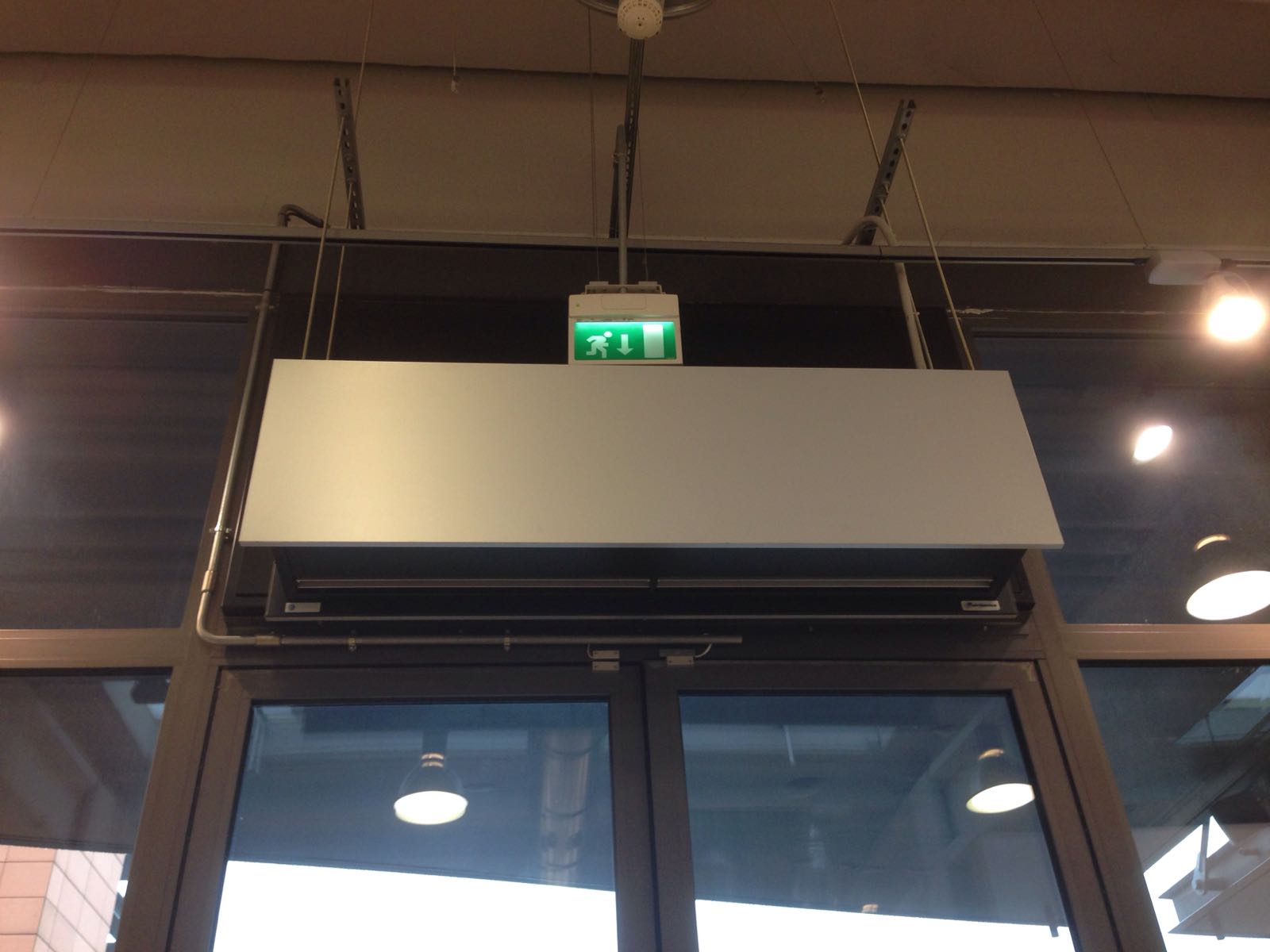

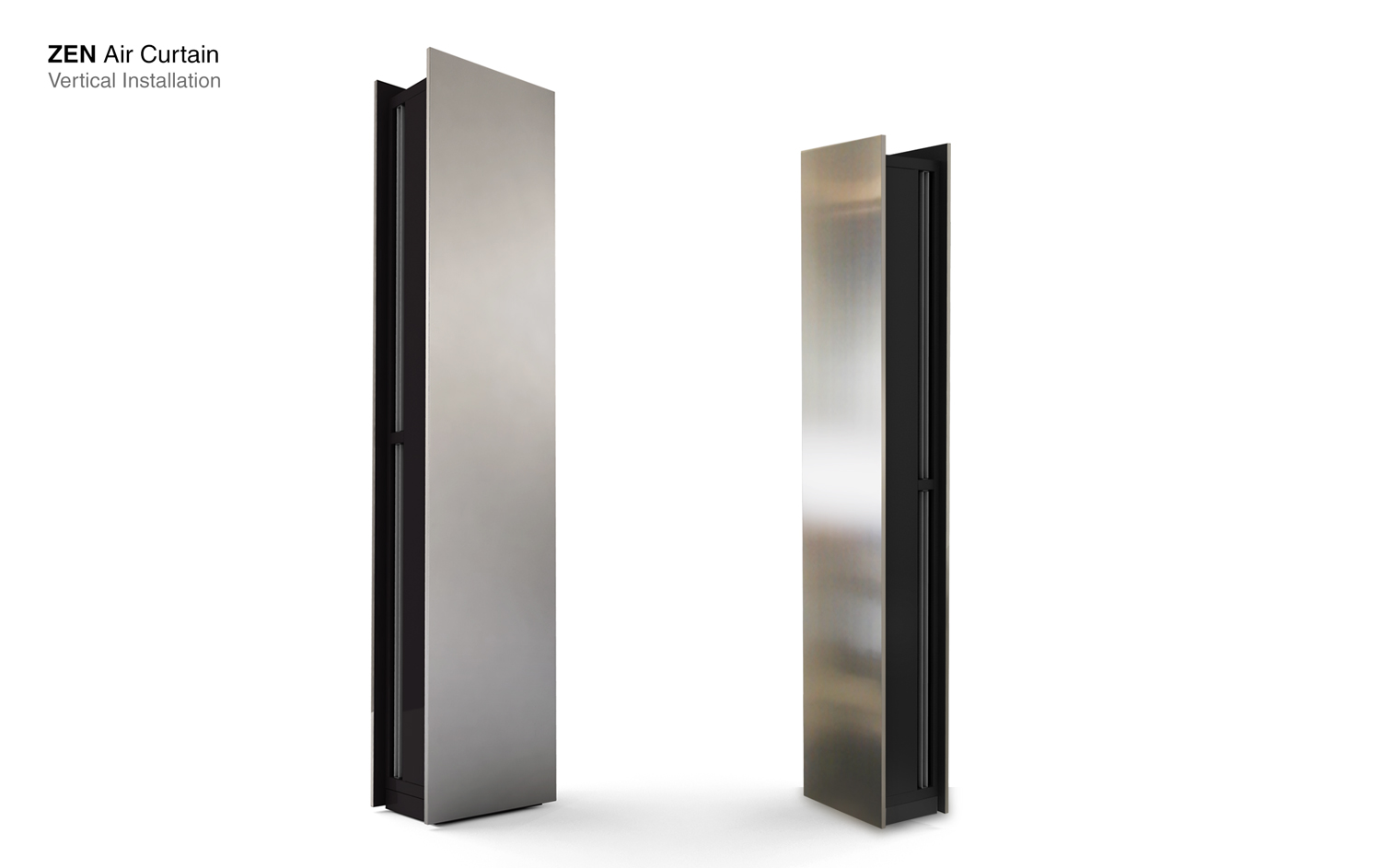

- Decorative air curtain in contemporary architectural style. Its minimalist and smart design integrates in any environment and offers infinite options to customize.
- The panels can include logos, lighting, signage, safety or information signs, graphics, pictures, clocks, all according to customer specifications.
- Front anodized aluminium panels. Optionally manufactured in brushed or mirror polished stainless steel. Other materials are possible, such as galvanized steel, smooth or texturated skinplate, wood, etc.
- Central structure made of galvanized steel finished in black forge as standard. Other colours are available on request.
- Anodized aluminium outlet vanes, airfoil shaped, adjustable in both directions.
- Low noise double-inlet centrifugal fans with external rotor motor. 5-speed controller. EC models assembled with very low consumption efficiency fans.
- “P” type with water heated coil. “E” type with electrical shielded elements, three stages with integrated regulation. “A” type without heating, air only. Optional expansion DX coil.
- Advanced Plug&Play control. Includes: Advanced PRO control with LCD display and integrated thermostat, door contact, 7m RJ11 cable and remote control. Optional: intelligent Clever Pro Control (automatic, programmable, ModBus for PKC, timer, etc.)

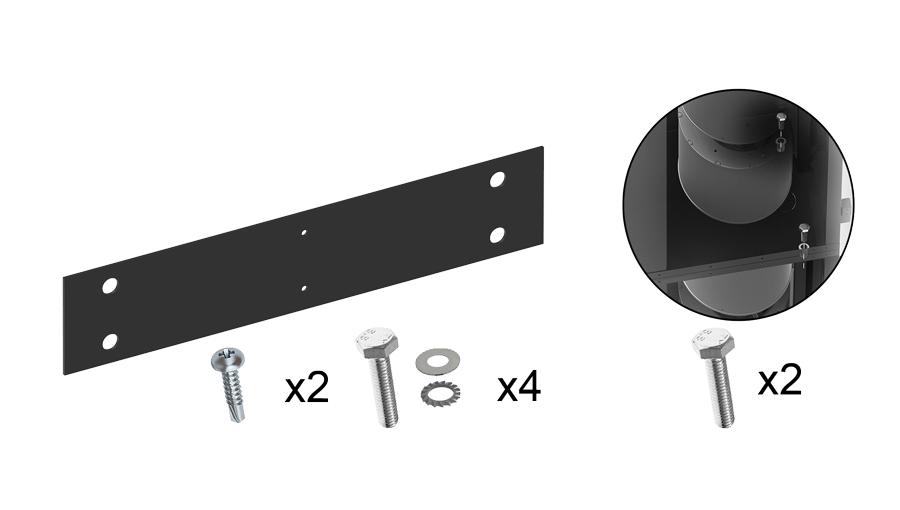

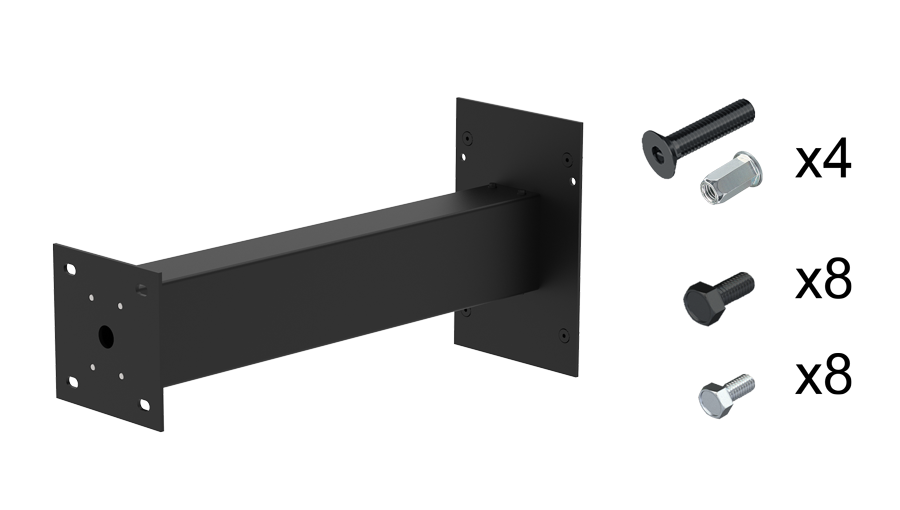

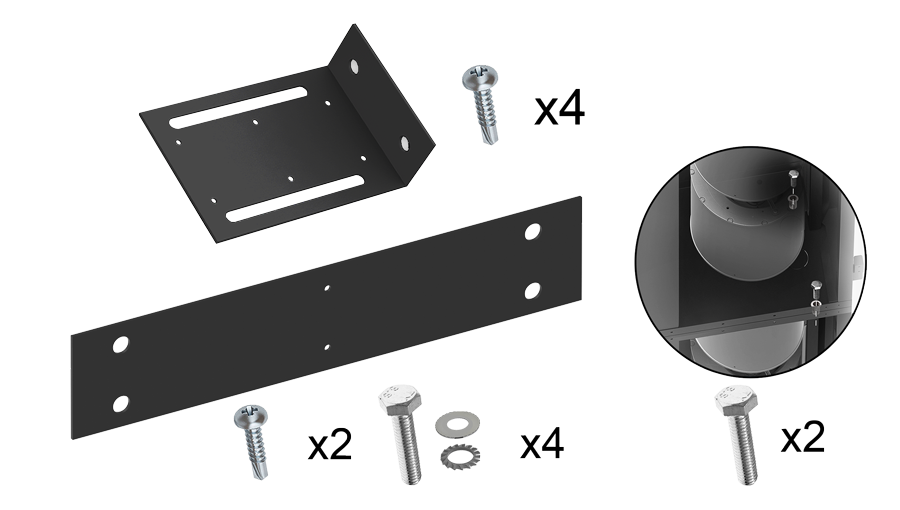

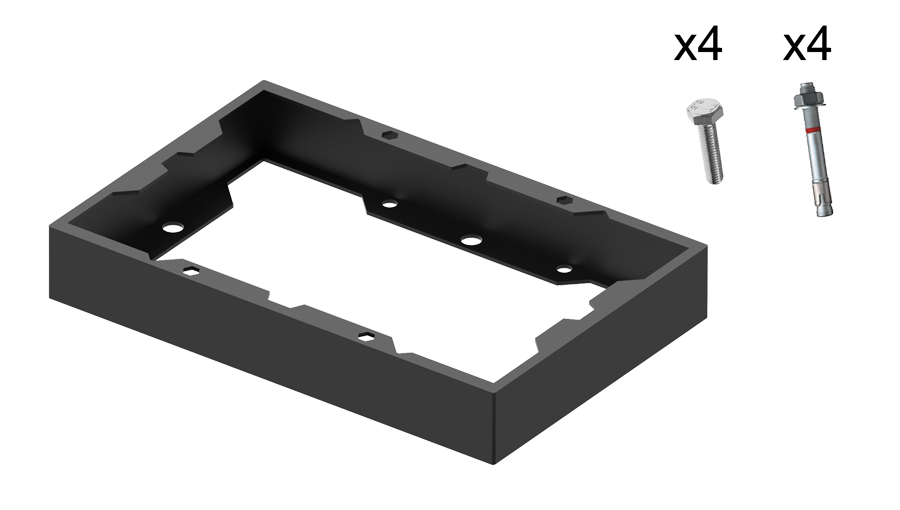

FINISHES | CATALOGUE
Model Nominal Airflow
m³/hRecommended Installation Range
mNominal Airflow 208V
m³/hZEN M 1000 A 1980 2,5-3,5 - ZEN M 1500 A 2640 2,5-3,5 - ZEN M 2000 A 3960 2,5-3,5 - ZEN M 2500 A 4620 2,5-3,5 - ZEN G 1000 A 2400 3-4 - ZEN G 1500 A 3200 3-4 - ZEN G 2000 A 4800 3-4 - ZEN G 2500 A 5600 3-4 - ZEN ECG 1000 A 2700 3-4,2 - ZEN ECG 1500 A 3600 3-4,2 - ZEN ECG 2000 A 5400 3-4,2 - ZEN ECG 2500 A 6300 3-4,2 - Model Nominal Airflow
m³/hElectrical Heating Capacity 400Vx3
kWRecommended Installation Range
mElectrical Heating Capacity 460Vx3
kWElectrical Heating Capacity 480Vx3
kWElectrical Heating Capacity 208Vx3
kWElectrical Heating Capacity 575Vx3
kWNominal Airflow 208V
m³/hZEN M 1000 E 1980 3/6/9 2,5-3,5 - - - - - ZEN M 1500 E 2640 4/8/12 2,5-3,5 - - - - - ZEN M 2000 E 3960 6/12/18 2,5-3,5 - - - - - ZEN M 2500 E 4620 6/12/18 2,5-3,5 - - - - - ZEN G 1000 E 2400 5/10/15 3-4 - - - - - ZEN G 1500 E 3200 7,5/15/22,5 3-4 - - - - - ZEN G 2000 E 4800 10/20/30 3-4 - - - - - ZEN G 2500 E 5600 10/20/30 3-4 - - - - - ZEN ECG 1000 E 2700 5/10/15 3-4,2 - - - - - ZEN ECG 1500 E 3600 7,5/15/22,5 3-4,2 - - - - - ZEN ECG 2000 E 5400 10/20/30 3-4,2 - - - - - ZEN ECG 2500 E 6300 10/20/30 3-4,2 - - - - - Model Nominal Airflow
m³/hRecommended Installation Range
mHeating Capacity 80/60ºC (kW)
kWHeating Capacity 60/40ºC (kW)
kWHeating Capacity 50/40ºC
kWHeating Capacity 80/60ºC (Ventilation 208Vx1)
kWHeating Capacity 60/40ºC (Ventilation 208Vx1)
kWHeating Capacity 50/40ºC (Ventilation 208Vx1)
kWNominal Airflow 208V
m³/hZEN M 1000 P64 1860 2,5-3,5 - 9,22 - - - - - ZEN M 1000 P86 1860 2,5-3,5 9,84 - - - - - - ZEN M 1500 P64 2480 2,5-3,5 - 13,65 - - - - - ZEN M 1500 P86 2480 2,5-3,5 14,23 - - - - - - ZEN M 2000 P64 3720 2,5-3,5 - 19,7 - - - - - ZEN M 2000 P86 3720 2,5-3,5 22,17 - - - - - - ZEN M 2500 P64 4340 2,5-3,5 - 23,48 - - - - - ZEN M 2500 P86 4340 2,5-3,5 27,69 - - - - - - ZEN G 1000 P64 2250 3-4 - 10,42 - - - - - ZEN G 1000 P54 2250 3-4 - - 10,56 - - - - ZEN G 1000 P86 2250 3-4 11,04 - - - - - - ZEN G 1500 P64 3000 3-4 - 15,47 - - - - - ZEN G 1500 P54 3000 3-4 - - 16,37 - - - - ZEN G 1500 P86 3000 3-4 16,02 - - - - - - ZEN G 2000 P64 4500 3-4 - 22,29 - - - - - ZEN G 2000 P54 4500 3-4 - - 23,15 - - - - ZEN G 2000 P86 4500 3-4 24,92 - - - - - - ZEN G 2500 P64 5250 3-4 - 26,61 - - - - - ZEN G 2500 P54 5250 3-4 - - 28,76 - - - - ZEN G 2500 P86 5250 3-4 31,16 - - - - - - ZEN ECG 1000 P64 2550 3-4,2 - 11,27 - - - - - ZEN ECG 1000 P54 2550 3-4,2 - - 11,5 - - - - ZEN ECG 1000 P86 2550 3-4,2 11,89 - - - - - - ZEN ECG 1500 P64 3400 3-4,2 - 16,77 - - - - - ZEN ECG 1500 P54 3400 3-4,2 - - 17,86 - - - - ZEN ECG 1500 P86 3400 3-4,2 17,29 - - - - - - ZEN ECG 2000 P64 5100 3-4,2 - 24,14 - - - - - ZEN ECG 2000 P54 5100 3-4,2 - - 25,24 - - - - ZEN ECG 2000 P86 5100 3-4,2 26,86 - - - - - - ZEN ECG 2500 P64 5950 3-4,2 - 28,84 - - - - - ZEN ECG 2500 P54 5950 3-4,2 - - 31,38 - - - - ZEN ECG 2500 P86 5950 3-4,2 33,63 - - - - - - Model Nominal Airflow
m³/hRecommended Installation Range
mNominal Airflow 208V
m³/hZEN ECG 1000 A 2700 3-4,2 - ZEN ECG 1500 A 3600 3-4,2 - ZEN ECG 2000 A 5400 3-4,2 - ZEN ECG 2500 A 6300 3-4,2 - ZEN G 1000 A 60Hz 2400 3-4 0 ZEN G 1500 A 60Hz 3200 3-4 0 ZEN G 2000 A 60Hz 4800 3-4 0 ZEN G 2500 A 60Hz 5600 3-4 0 ZEN ECG 1000 A 60Hz 2700 3-4,2 - ZEN ECG 1500 A 60Hz 3600 3-4,2 - ZEN ECG 2000 A 60Hz 5400 3-4,2 - ZEN ECG 2500 A 60Hz 6300 3-4,2 - Model Nominal Airflow
m³/hElectrical Heating Capacity 400Vx3
kWRecommended Installation Range
mElectrical Heating Capacity 460Vx3
kWElectrical Heating Capacity 480Vx3
kWElectrical Heating Capacity 208Vx3
kWElectrical Heating Capacity 575Vx3
kWNominal Airflow 208V
m³/hZEN ECG 1000 E 2700 5/10/15 3-4,2 - - - - - ZEN ECG 1500 E 3600 7,5/15/22,5 3-4,2 - - - - - ZEN ECG 2000 E 5400 10/20/30 3-4,2 - - - - - ZEN ECG 2500 E 6300 10/20/30 3-4,2 - - - - - Model Nominal Airflow
m³/hRecommended Installation Range
mHeating Capacity 80/60ºC (kW)
kWHeating Capacity 60/40ºC (kW)
kWHeating Capacity 50/40ºC
kWHeating Capacity 80/60ºC (Ventilation 208Vx1)
kWHeating Capacity 60/40ºC (Ventilation 208Vx1)
kWHeating Capacity 50/40ºC (Ventilation 208Vx1)
kWNominal Airflow 208V
m³/hZEN ECG 1000 P64 2550 3-4,2 - 11,27 - - - - - ZEN ECG 1000 P54 2550 3-4,2 - - 11,5 - - - - ZEN ECG 1000 P86 2550 3-4,2 11,89 - - - - - - ZEN ECG 1500 P64 3400 3-4,2 - 16,77 - - - - - ZEN ECG 1500 P54 3400 3-4,2 - - 17,86 - - - - ZEN ECG 1500 P86 3400 3-4,2 17,29 - - - - - - ZEN ECG 2000 P64 5100 3-4,2 - 24,14 - - - - - ZEN ECG 2000 P54 5100 3-4,2 - - 25,24 - - - - ZEN ECG 2000 P86 5100 3-4,2 26,86 - - - - - - ZEN ECG 2500 P64 5950 3-4,2 - 28,84 - - - - - ZEN ECG 2500 P54 5950 3-4,2 - - 31,38 - - - - ZEN ECG 2500 P86 5950 3-4,2 33,63 - - - - - - Model Nominal Airflow
m³/hRecommended Installation Range
mNominal Airflow 208V
m³/hZEN G 1000 A 60Hz CSA 2235 3-4 2100 ZEN G 1500 A 60Hz CSA 2980 3-4 2800 ZEN G 2000 A 60Hz CSA 4470 3-4 4200 ZEN G 2500 A 60Hz CSA 5215 3-4 4900 ZEN ECG 1000 A 60Hz CSA 2530 3-4,2 2380 ZEN ECG 1500 A 60Hz CSA 3400 3-4,2 3195 ZEN ECG 2000 A 60Hz CSA 5060 3-4,2 4760 ZEN ECG 2500 A 60Hz CSA 5930 3-4,2 5575 Model Nominal Airflow
m³/hElectrical Heating Capacity 400Vx3
kWRecommended Installation Range
mElectrical Heating Capacity 460Vx3
kWElectrical Heating Capacity 480Vx3
kWElectrical Heating Capacity 208Vx3
kWElectrical Heating Capacity 575Vx3
kWNominal Airflow 208V
m³/hZEN G 1000 E 60Hz 208V-1 208V-3 CSA 2070 - 3-4 - - 2,5/5/7,5 - 2070 ZEN G 1000 E 60Hz 240V-1 208V-3 CSA 2205 - 3-4 - - 4/8/12 - - ZEN G 1000 E 60Hz 208V-1 480V-3 CSA 2070 - 3-4 2,5/5/7,5 3/5,5/8,5 - - 2070 ZEN G 1000 E 60Hz 240V-1 480V-3 CSA 2205 - 3-4 4/8/12 4,3/8,7/13 - - - ZEN G 1000 E 60Hz 208V-1 575V-3 CSA 2070 - 3-4 - - - 3,5/4/7,5 2070 ZEN G 1000 E 60Hz 240V-1 575V-3 CSA 2205 - 3-4 - - - 4/8/12 - ZEN G 1500 E 60Hz 208V-1 208V-3 CSA 2760 - 3-4 - - 3,5/6,5/10 - 2760 ZEN G 1500 E 60Hz 240V-1 208V-3 CSA 2940 - 3-4 - - 6/9,5/15,5 - - ZEN G 1500 E 60Hz 208V-1 480V-3 CSA 2760 - 3-4 3,5/7/10,5 4/7,5/11,5 - - 2760 ZEN G 1500 E 60Hz 240V-1 480V-3 CSA 2940 - 3-4 5,3/10,7/16 5,8/11,7/17,5 - - - ZEN G 1500 E 60Hz 208V-1 575V-3 CSA 2760 - 3-4 - - - 5/5,5/10,5 2760 ZEN G 1500 E 60Hz 240V-1 575V-3 CSA 2940 - 3-4 - - - 5,5/11/16,5 - ZEN G 2000 E 60Hz 208V-1 208V-3 CSA 4140 - 3-4 - - 5/9/14 - 4140 ZEN G 2000 E 60Hz 240V-1 208V-3 CSA 4410 - 3-4 - - 5/9/14 - - ZEN G 2000 E 60Hz 208V-1 480V-3 CSA 4140 - 3-4 5/10,5/15,5 5,5/11/16,5 - - 4140 ZEN G 2000 E 60Hz 240V-1 480V-3 CSA 4410 - 3-4 8,2/16,3/24,5 8,8/17,7/26,5 - - - ZEN G 2000 E 60Hz 208V-1 575V-3 CSA 4140 - 3-4 - - - 6,5/8/14,5 4140 ZEN G 2000 E 60Hz 240V-1 575V-3 CSA 4410 - 3-4 - - - 8/16/24 - ZEN G 2500 E 60Hz 208V-1 208V-3 CSA 4830 - 3-4 - - 5,5/9/14,5 - 4830 ZEN G 2500 E 60Hz 240V-1 208V-3 CSA 5145 - 3-4 - - 5,5/9/14,4 - - ZEN G 2500 E 60Hz 208V-1 480V-3 CSA 4830 - 3-4 6/12/18 6,5/13/19,5 - - 4830 ZEN G 2500 E 60Hz 240V-1 480V-3 CSA 5145 - 3-4 9,3/18,7/28 10,2/20,3/30,5 - - - ZEN G 2500 E 60Hz 208V-1 575V-3 CSA 4830 - 3-4 - - - 8/9,5/17,5 4830 ZEN G 2500 E 60Hz 240V-1 575V-3 CSA 5145 - 3-4 - - - 9,5/19/28,5 - ZEN ECG 1000 E 60Hz 208V-1 208V-3 CSA 2340 - 3-4,2 - - 4/8/12 - 2340 ZEN ECG 1000 E 60Hz 240V-1 208V-3 CSA 2490 - 3-4,2 - - 4/8/12 - - ZEN ECG 1000 E 60Hz 208V-1 480V-3 CSA 2340 - 3-4,2 4/8/12 4,3/8,7/13 - - 2340 ZEN ECG 1000 E 60Hz 240V-1 480V-3 CSA 2490 - 3-4,2 4/8/12 4,3/8,7/13 - - - ZEN ECG 1000 E 60Hz 208V-1 575V-3 CSA 2340 - 3-4,2 - - - 4/8/12 2340 ZEN ECG 1000 E 60Hz 240V-1 575V-3 CSA 2490 - 3-4,2 - - - 4/8/12 - ZEN ECG 1500 E 60Hz 208V-1 208V-3 CSA 3140 - 3-4,2 - - 6/9,5/15,5 - 3140 ZEN ECG 1500 E 60Hz 240V-1 208V-3 CSA 3340 - 3-4,2 - - 6/9,5/15,5 - - ZEN ECG 1500 E 60Hz 208V-1 480V-3 CSA 3140 - 3-4,2 5,3/10,7/16 5,8/11,7/17,5 - - 3140 ZEN ECG 1500 E 60Hz 240V-1 480V-3 CSA 3340 - 3-4,2 5,3/10,7/16 5,8/11,7/17,5 - - - ZEN ECG 1500 E 60Hz 208V-1 575V-3 CSA 3140 - 3-4,2 - - - 5,5/11/16,5 3140 ZEN ECG 1500 E 60Hz 240V-1 575V-3 CSA 3340 - 3-4,2 - - - 5,5/11/16,5 - ZEN ECG 2000 E 60Hz 208V-1 208V-3 CSA 4680 - 3-4,2 - - 5/9/14 - 4680 ZEN ECG 2000 E 60Hz 240V-1 208V-3 CSA 4980 - 3-4,2 - - 5/9/14 - - ZEN ECG 2000 E 60Hz 208V-1 480V-3 CSA 4680 - 3-4,2 8,2/16,3/24,5 8,8/17,7/26,5 - - 4680 ZEN ECG 2000 E 60Hz 240V-1 480V-3 CSA 4980 - 3-4,2 8,2/16,3/24,5 8,8/17,7/26,5 - - - ZEN ECG 2000 E 60Hz 208V-1 575V-3 CSA 4680 - 3-4,2 - - - 8/16/24 4680 ZEN ECG 2000 E 60Hz 240V-1 575V-3 CSA 4980 - 3-4,2 - - - 8/16/24 - ZEN ECG 2500 E 60Hz 208V-1 208V-3 CSA 5480 - 3-4,2 - - 5,5/9/14,5 - 5480 ZEN ECG 2500 E 60Hz 240V-1 208V-3 CSA 5830 - 3-4,2 - - 5,5/9/14,5 - - ZEN ECG 2500 E 60Hz 208V-1 480V-3 CSA 5480 - 3-4,2 9,3/18,7/28 10,2/20,3/30,5 - - 5480 ZEN ECG 2500 E 60Hz 240V-1 480V-3 CSA 5830 - 3-4,2 9,3/18,7/28 10,2/20,3/30,5 - - - ZEN ECG 2500 E 60Hz 208V-1 575V-3 CSA 5480 - 3-4,2 - - - 9,5/19/28,5 5480 ZEN ECG 2500 E 60Hz 240V-1 575V-3 CSA 5830 - 3-4,2 - - - 9,5/19/28,5 - Model Nominal Airflow
m³/hRecommended Installation Range
mHeating Capacity 80/60ºC (kW)
kWHeating Capacity 60/40ºC (kW)
kWHeating Capacity 50/40ºC
kWHeating Capacity 80/60ºC (Ventilation 208Vx1)
kWHeating Capacity 60/40ºC (Ventilation 208Vx1)
kWHeating Capacity 50/40ºC (Ventilation 208Vx1)
kWNominal Airflow 208V
m³/hZEN G 1000 P86 60Hz CSA 2145 3-4 10.86 - - 8.65 - - 2025 ZEN G 1000 P64 60Hz CSA 2145 3-4 - 9.75 - - 9.36 - 2025 ZEN G 1000 P54 60Hz CSA 2145 3-4 - - 9.87 - - 9.44 2025 ZEN G 1500 P86 60Hz CSA 2860 3-4 15.76 - - 15.15 - - 2700 ZEN G 1500 P64 60Hz CSA 2860 3-4 - 14.48 - - 13.89 - 2700 ZEN G 1500 P54 60Hz CSA 2860 3-4 - - 15.3 - - 14.63 2700 ZEN G 2000 P86 60Hz CSA 4290 3-4 24.51 - - 23.57 - - 4050 ZEN G 2000 P64 60Hz CSA 4290 3-4 - 20.86 - - 20.02 - 4050 ZEN G 2000 P54 60Hz CSA 4290 3-4 - - 21.64 - - 20.69 4050 ZEN G 2500 P86 60Hz CSA 5005 3-4 30.64 - - 29.46 - - 4725 ZEN G 2500 P64 60Hz CSA 5005 3-4 - 24.9 - - 23.88 - 4725 ZEN G 2500 P54 60Hz CSA 5005 3-4 - - 26.88 - - 25.7 4725 ZEN ECG 1000 P86 60Hz CSA 2440 3-4,2 11.74 - - 11.34 - - 2290 ZEN ECG 1000 P64 60Hz CSA 2440 3-4,2 - 10.59 - - 10.21 - 2290 ZEN ECG 1000 P54 60Hz CSA 2440 3-4,2 - - 10.8 - - 10.37 2290 ZEN ECG 1500 P86 60Hz CSA 3280 3-4,2 17.09 - - 16.47 - - 3080 ZEN ECG 1500 P64 60Hz CSA 3280 3-4,2 - 15.78 - - 15.17 - 3080 ZEN ECG 1500 P54 60Hz CSA 3280 3-4,2 - - 16.8 - - 16.1 3080 ZEN ECG 2000 P86 60Hz CSA 4880 3-4,2 26.54 - - 25.61 - - 4580 ZEN ECG 2000 P64 60Hz CSA 4880 3-4,2 - 22.7 - - 21.84 - 4580 ZEN ECG 2000 P54 60Hz CSA 4880 3-4,2 - - 23.71 - - 22.76 4580 ZEN ECG 2500 P86 60Hz CSA 5720 3-4,2 32.25 - - 32.04 - - 5370 ZEN ECG 2500 P64 60Hz CSA 5720 3-4,2 - 27.14 - - 26.1 - 5370 ZEN ECG 2500 P54 60Hz CSA 5720 3-4,2 - - 29.51 - - 28.29 5370
