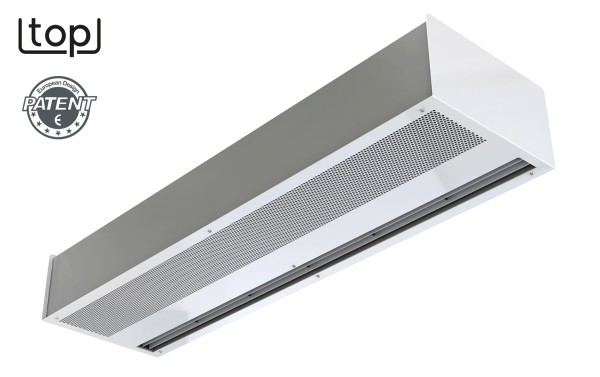

Air Curtain TOP
The innovative concept of a recessed air curtain, which can be installed in a completely exposed way, makes it a decorative model. It is designed to integrate into modern spaces with contemporary architecture or industrial-style decor.
The air inlet and outlet are integrated into a single cover. The front panel is ideal for customizing with logos, lighting, lettering, or signage, according to the client's requirements.
Advanced Plug&Play control. Includes: Advanced PRO control with LCD display and integrated thermostat, door contact, 7m and remote control. With integrated functions: door delay (configurable); interface mode; operation, alarm and maintenance warning signals; and multiple digital inputs that modify the air curtain's operation. Includes protective varnish for the electronic board and control.
Optional:
• Auxiliary temperature sensors that improve air curtain control and increase energy savings.
• Clever PRO intelligent control (automatic, programmable, ModBus via PLC, timer, etc.) with an additional temperature sensor.
- Innovative concept of decorative air curtain based on a recessed model to be installed free-hanging.

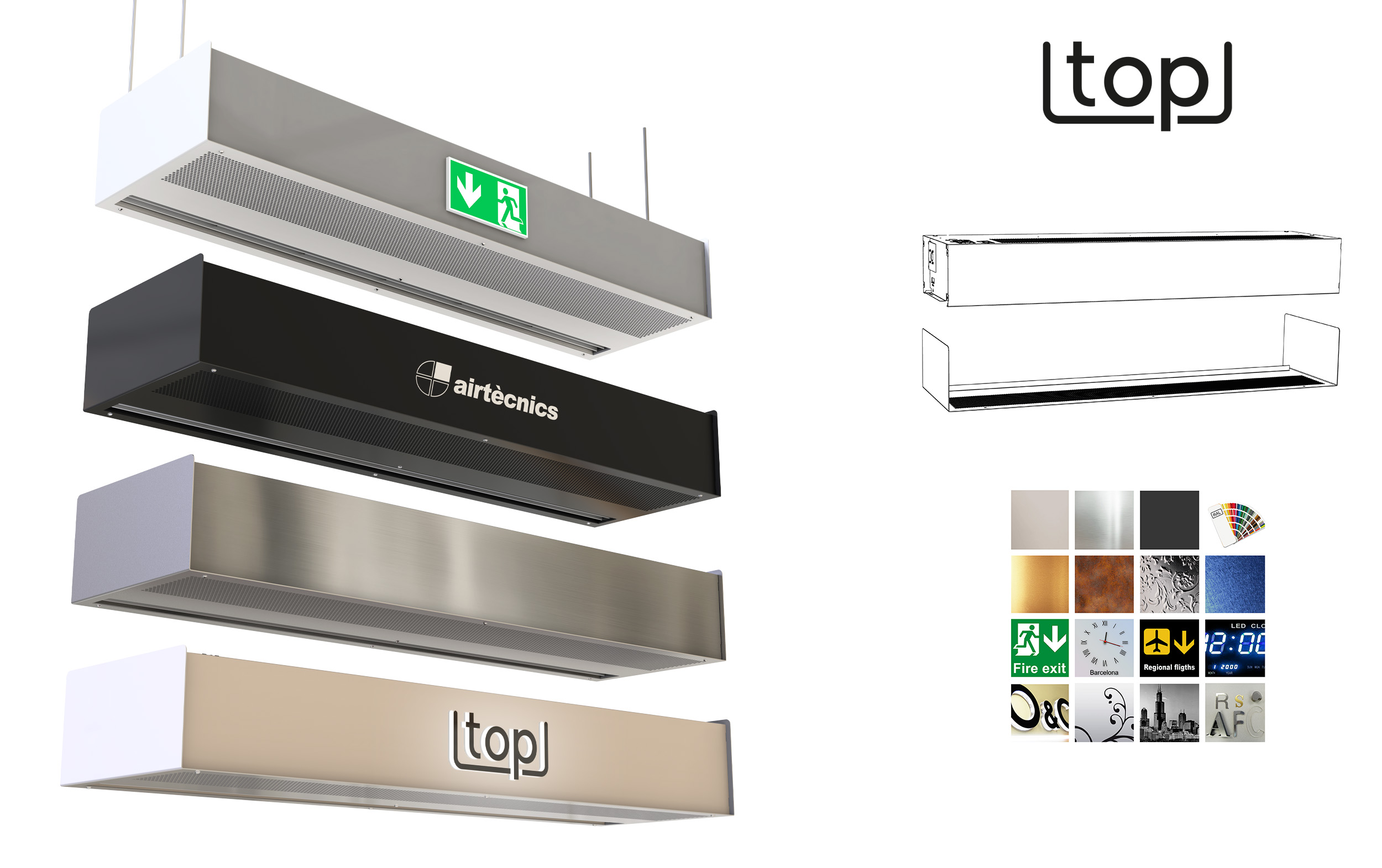

- Smooth front panel can be customized with logotypes, lighting, lettering or safety and informative signals, according to the client requirements.

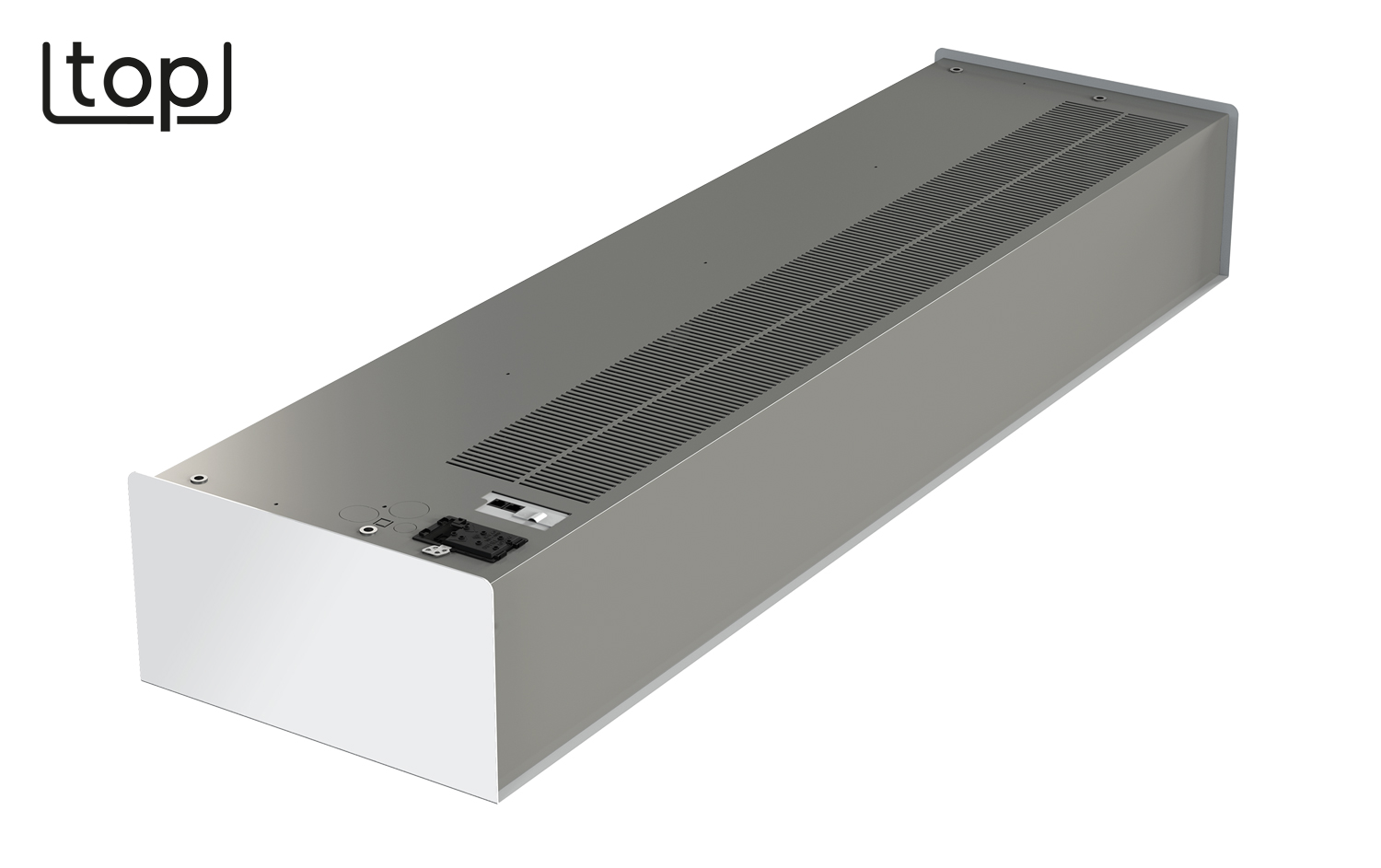

- Self-supporting casing construction made of galvanized steel plate painted in grey RAL9006. Other colours are available on request.

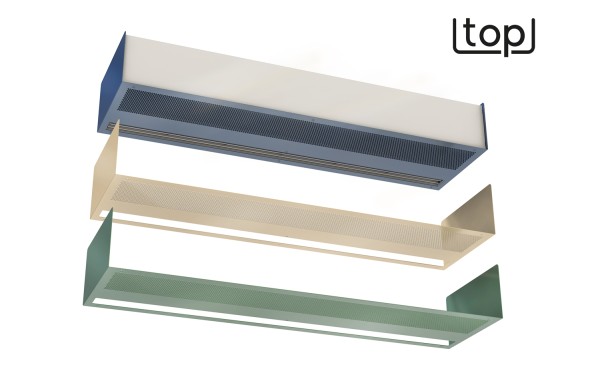

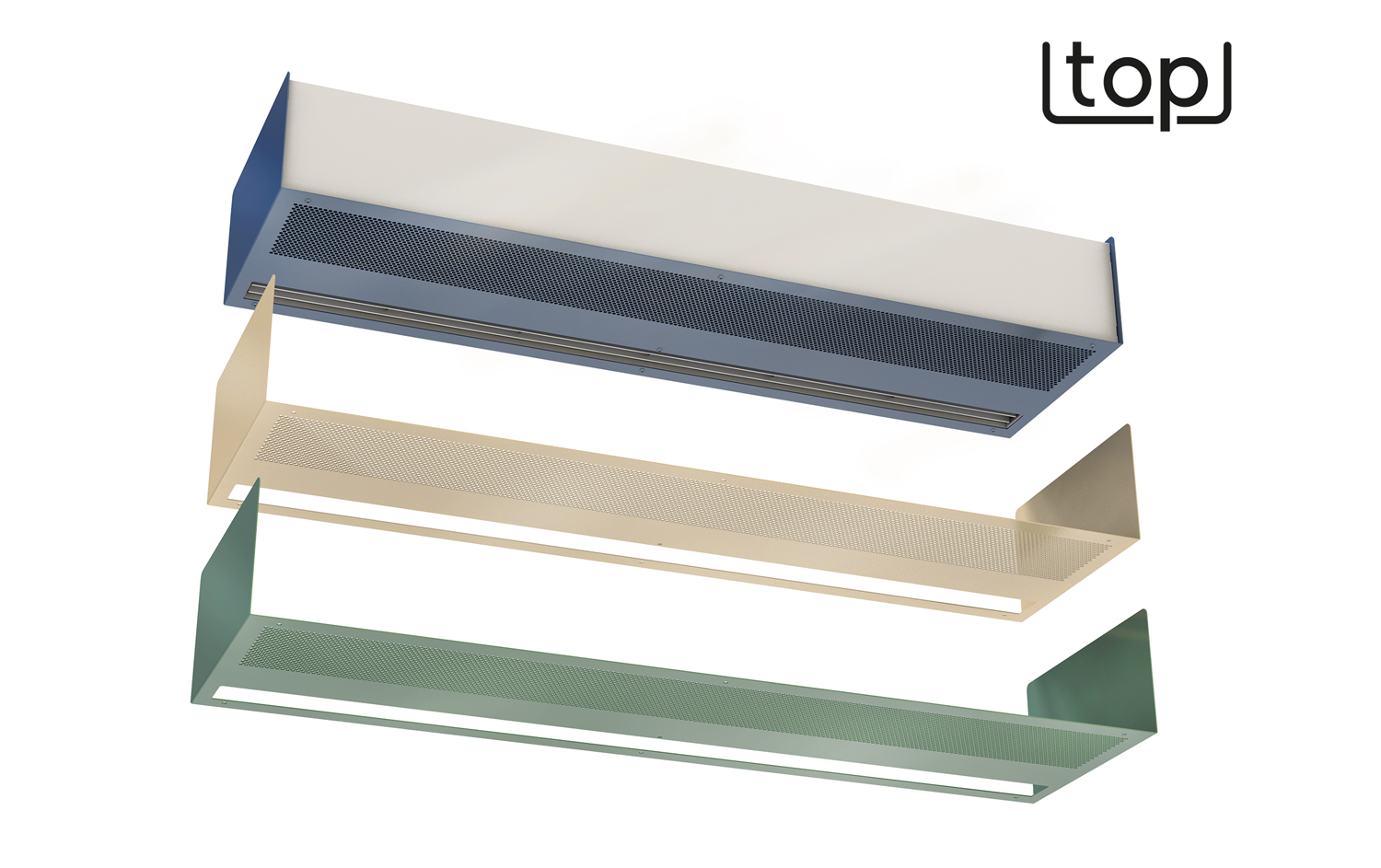

- Inlet and Outlet inbuilt in the same grid painted in white RAL9016. Other colours are available on request.
- Anodized aluminium outlet vanes, airfoil shaped.
- Low noise twisted cross-flow fans driven by a 2-speed external rotor motor.
- "P" type with water heated coil and integrated regulation for ON/OFF or three stages 0-10V proportional valve. “E” type with electrical shielded elements, three stages with integrated regulation. “A” type without heating, air only.
- Advanced Plug&Play control. Includes: Advanced PRO control with LCD display and integrated thermostat, door contact, 7m and remote control. With integrated functions: door delay (configurable); interface mode; operation, alarm and maintenance warning signals; and multiple digital inputs that modify the air curtain's operation.
- Includes protective varnish for the electronic board and control.
- Optional:
• Auxiliary temperature sensors that improve air curtain control and increase energy savings.
• Clever PRO intelligent control (automatic, programmable, ModBus via PLC, timer, etc.) with an additional temperature sensor.
| Model | Nominal Airflow m³/h | Recommended Installation Range m |
|---|---|---|
| TOP 1000 A | 1900 | 3.5 |
| TOP 1500 A | 2800 | 3.5 |
| TOP 2000 A | 3800 | 3.5 |
| Model | Nominal Airflow m³/h | Electrical Heating Capacity 400Vx3 kW | Recommended Installation Range m |
|---|---|---|---|
| TOP 1000 E | 1800 | 3/6/9 | 3.5 |
| TOP 1500 E | 2650 | 4/8/12 | 3.5 |
| TOP 2000 E | 3600 | 6/12/18 | 3.5 |
| Model | Nominal Airflow m³/h | Heating Capacity 80/60ºC (kW) kW | Recommended Installation Range m |
|---|---|---|---|
| TOP 1000 P86 | 1750 | 9,28 | 3.5 |
| TOP 1500 P86 | 2400 | 13,65 | 3.5 |
| TOP 2000 P86 | 3500 | 19,26 | 3.5 |
| TOP 1000 P64 | 1600 | - | 3.5 |
| TOP 1500 P64 | 2200 | - | 3.5 |
| TOP 2000 P64 | 3200 | - | 3.5 |
